Marshall Electronics CV356-10X kompaktní 10x zoom Full HD kamera

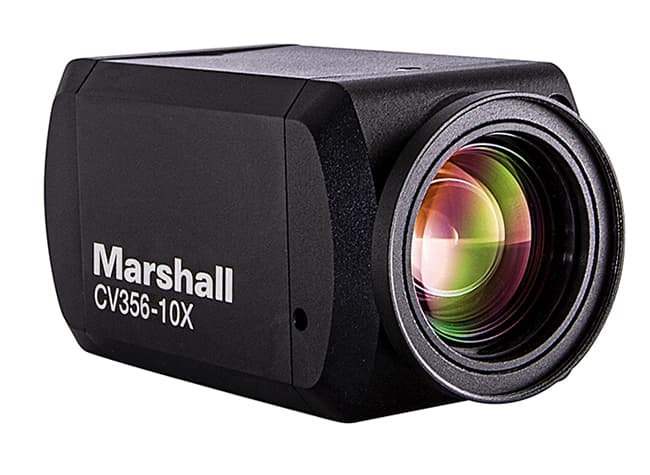

Marshall CV356-10X – Compact Camera with 10x Zoom

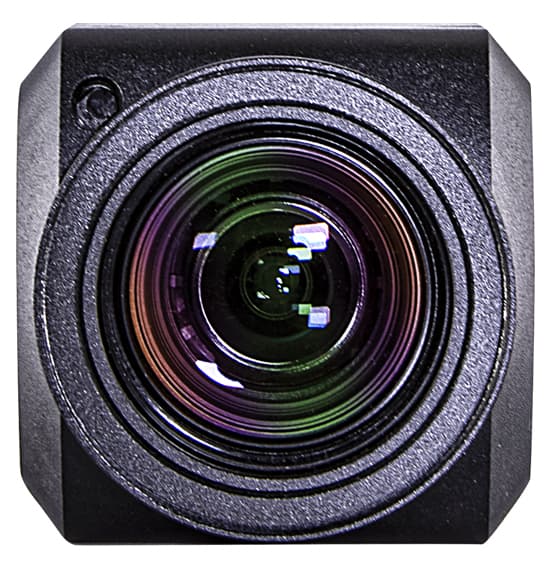

The CV356-10X is a compact Full HD camera with an integrated motorized 10x optical zoom (4.7–47 mm focal range, F1.6–F3.0) complemented by a 12x digital zoom. The image from the 1/2.8" sensor with approx. 2.1 MP resolution is available simultaneously on the 3G-SDI and HDMI outputs at up to 1920×1080 at 60 fps, along with a range of additional frame rates for use in different regions.

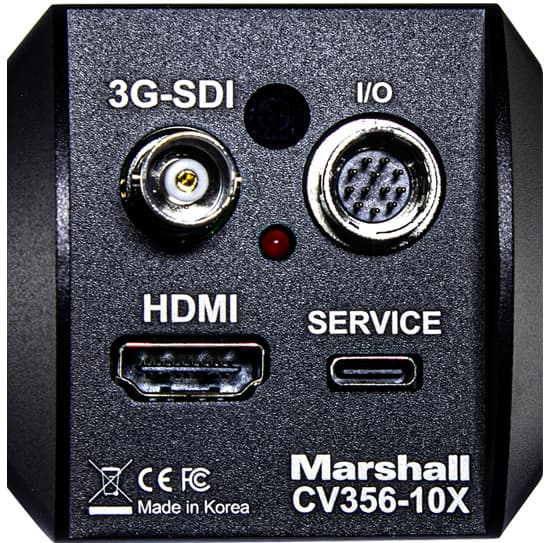

The aluminum-alloy body with full-size 3G-SDI and HDMI connectors, side covers protecting the cabling and a locking I/O cable (RS485/audio/power) is built for frequent repositioning in the field. A threaded adapter for 49mm supplementary lenses and ND filters expands the options for detail shots even in bright sunlight. The camera is controlled via RS485 (VISCA, Pelco-P/D protocols) and suits sports broadcasts, live events, houses of worship and educational institutions.

• Sensor: 1/2.8" progressive CMOS, approx. 2.1 MP
• Zoom: 10x optical (4.7–47 mm, F1.6–F3.0) + 12x digital
• Angle of view: 57.7° (wide) to 6.4° (tele)
• Resolution: Full HD up to 1920×1080p60
• Outputs: 3G-SDI and HDMI simultaneously
• Sensitivity: 0.1 Lux (day), 0.01 Lux (night)
• Control: RS485 – VISCA (Sony), Pelco-P/D
• Power: 12V DC, approx. 6 W consumption
• Dimensions / weight: 104.55 × 56 × 56 mm, 0.36 kg (camera body only)
