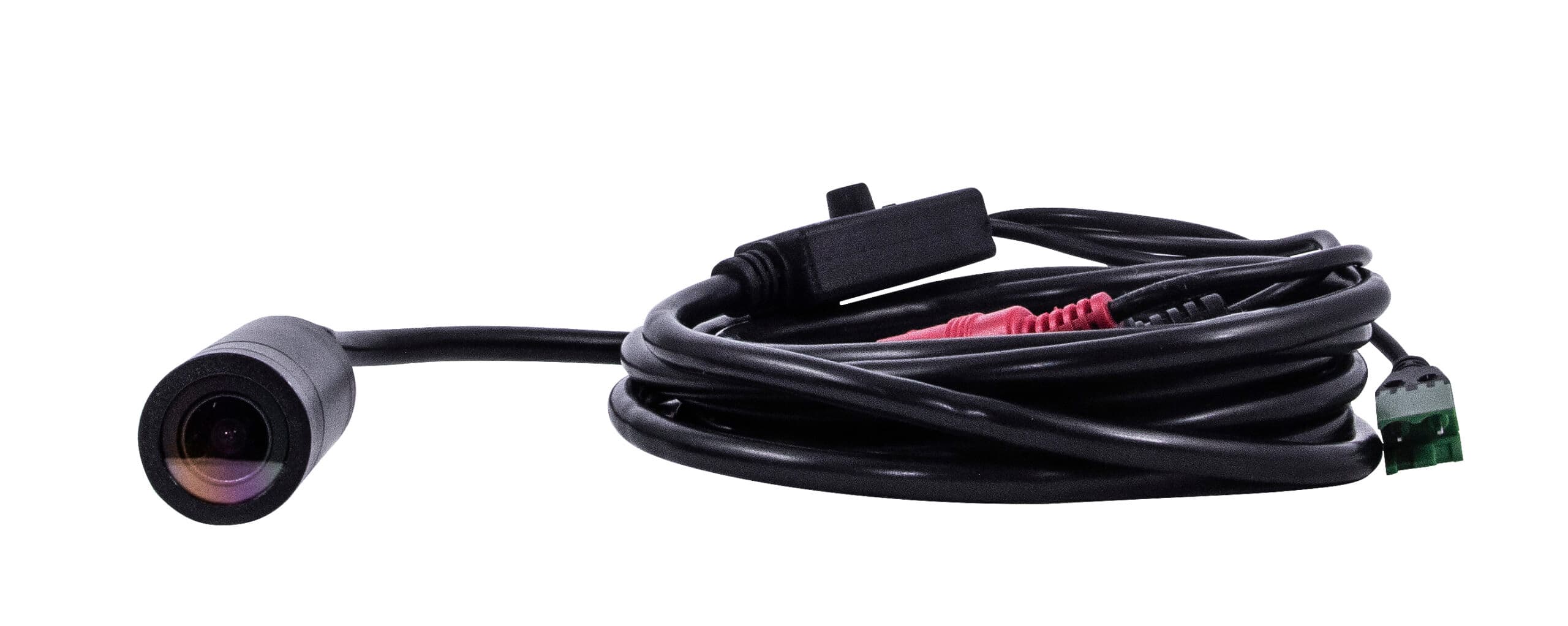

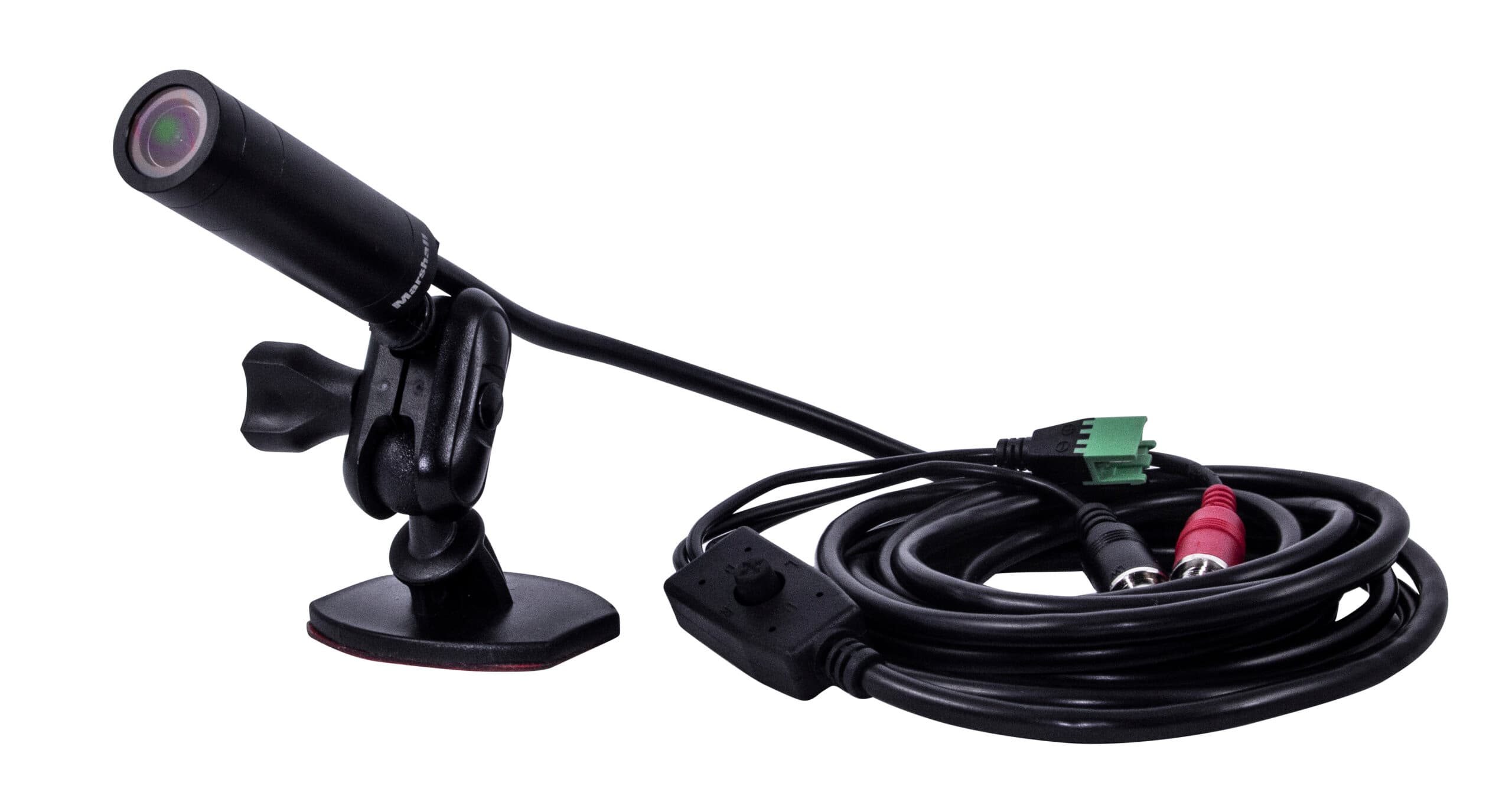

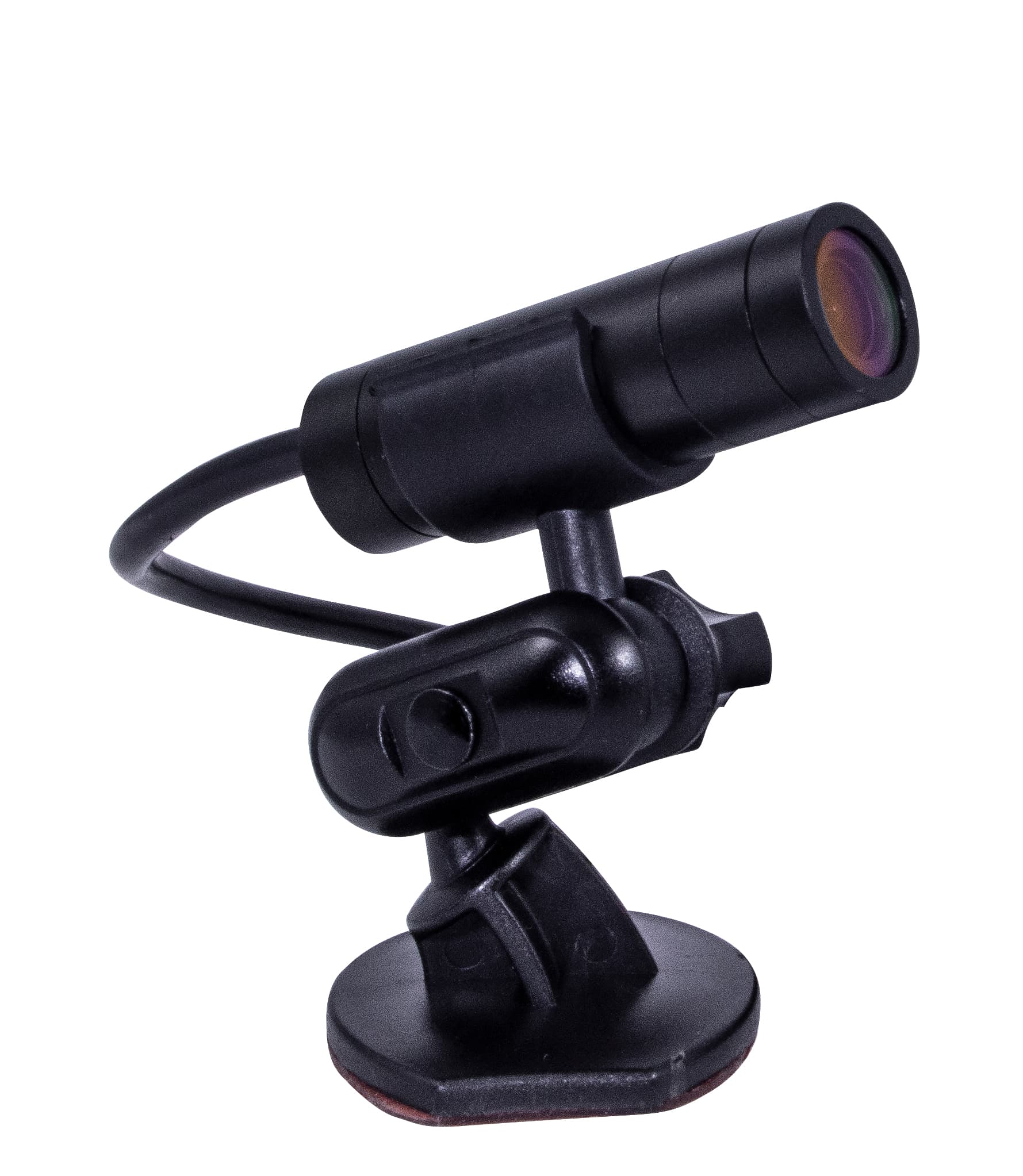

Marshall Electronics CV228 HD Lipstick kamera IP67

OVERVIEW

Key Features:

• • Ultra-compact lipstick-style camera measuring just 62.5 mm x 19.5 mm x 19.5 mm
• • Interchangeable M12 lens mount
• • 4mm M12 lens included
• • 3G-SDI video output connector
• • 1/2.86″ 2.5-megapixel sensor
• • 1920x1080 resolution at up to 60p
• • IP67 rain and dust protection rating

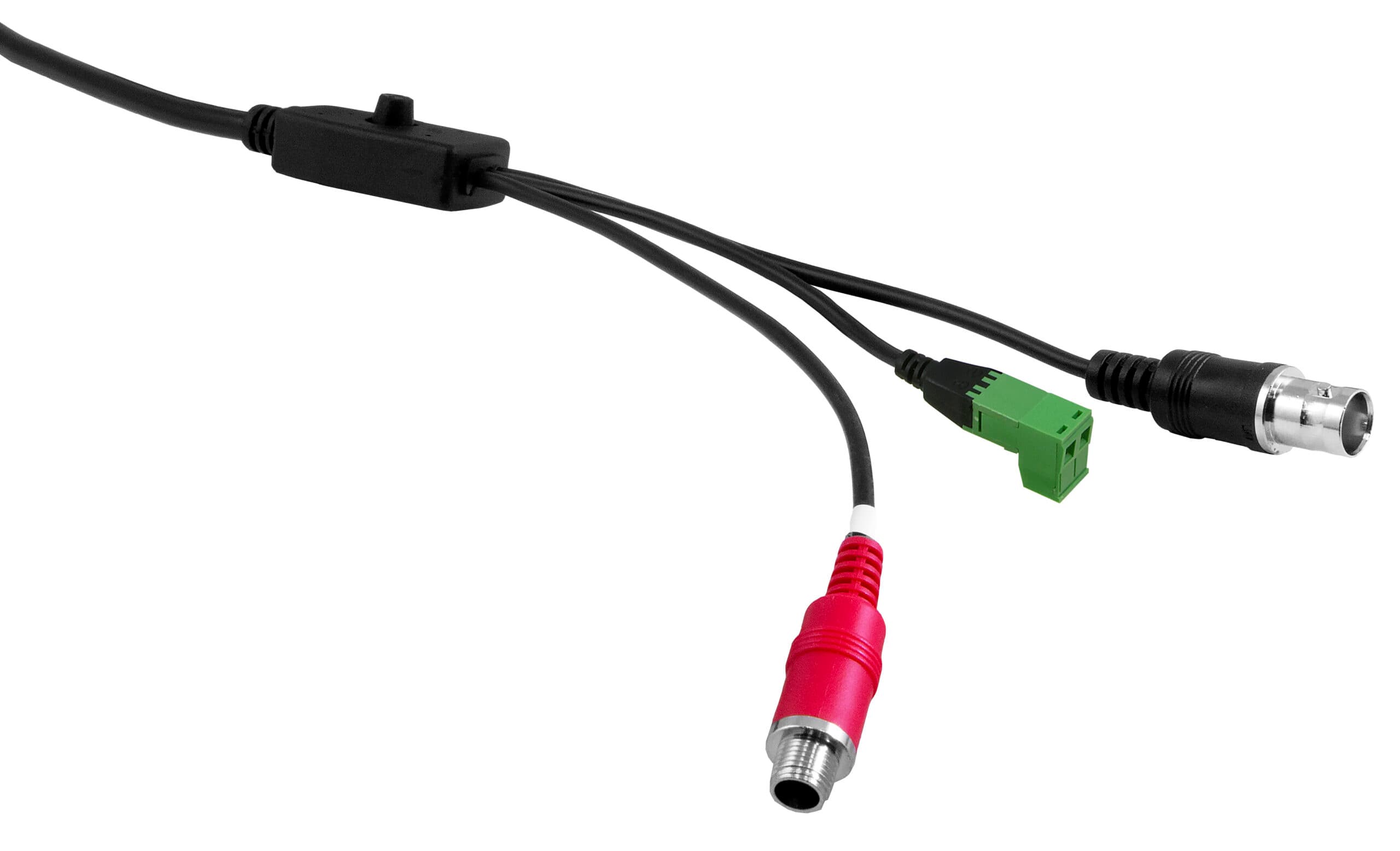

• • Integrated 10' (approx. 3m) I/O breakout cable with control joystick

Product Overview:

The CV228 can be placed in discreet locations and withstand dirty, dusty and wet environments thanks to its IP67 rain- and dust-protected housing. Despite its compact form, the CV228 produces high-quality video delivered over full-size 3G/HD-SDI in progressive or interlaced resolutions up to 1920x1080.

Utilizing the latest Sony sensor and processor technology, the CV228 produces a professional image with a low noise floor, even in low-light conditions. Easily selectable 1080p, 1080i and 720p resolutions at 60, 59.94, 50, 30, 29.97, 25 fps. For remote matching and adjustment, the CV228 supports RS-485 control, allowing precise image adjustments to be made from control rooms, OB vans or broadcast vehicles.

SPECIFICATIONS

PACKAGE CONTENTS

• • 1x Marshall CV228 camera body
• • 1x 10' breakout cable (attached to the camera body)
• • 1x 4mm M12 lens
• • 1x power supply (PSU)
