Marshall Electronics CV566 Genlock mini kamera

OVERVIEW

Key features:

• • Genlock tri-level sync for broadcast integration
• • Interchangeable M12 lens mount
• • 4.0mm M12 lens included
• • 3G-SDI & HDMI video output connectors
• • 1920x1080 up to 60P
• • I/O breakout cable with control joystick
• • 3.5mm audio input

Product introduction:

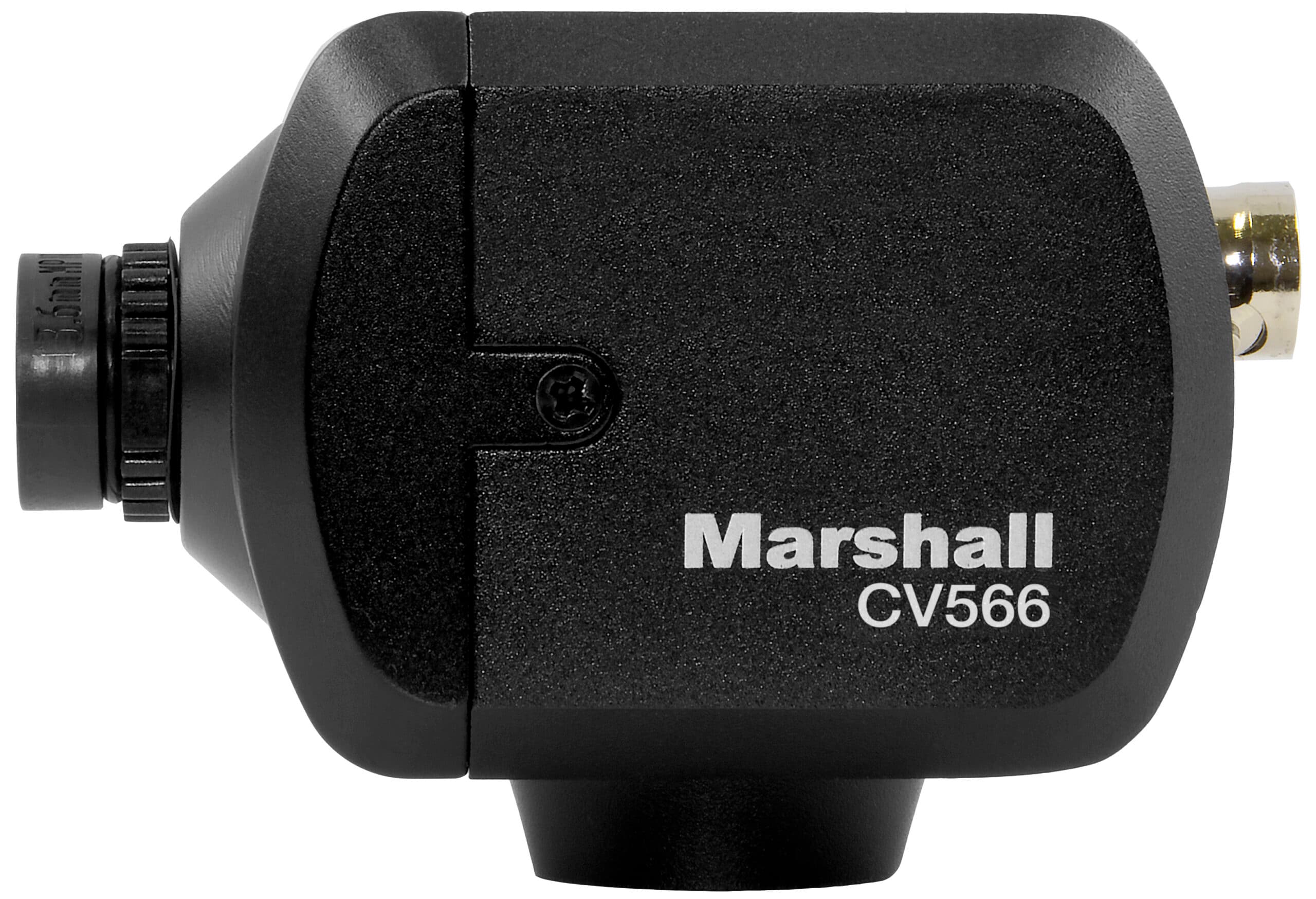

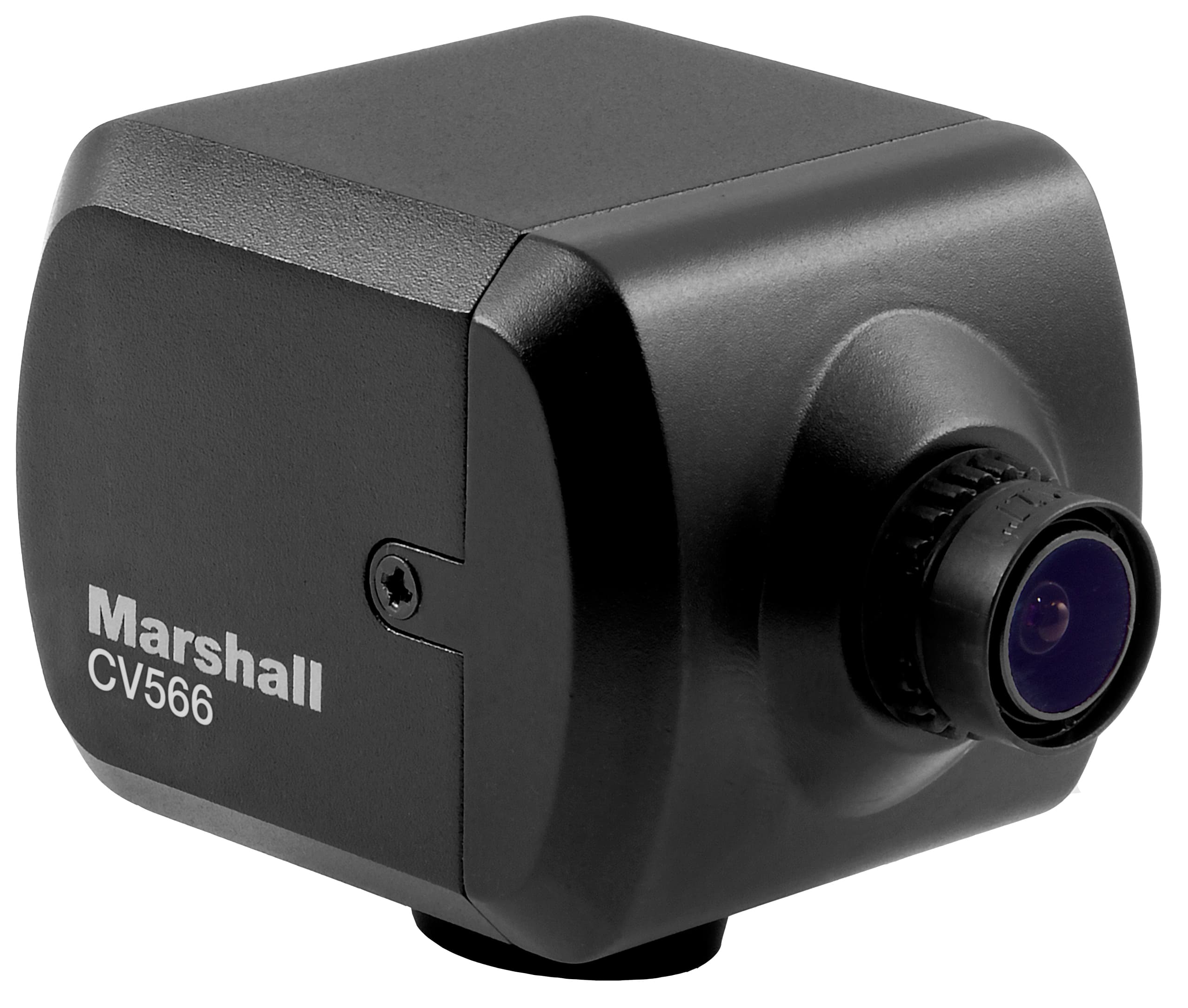

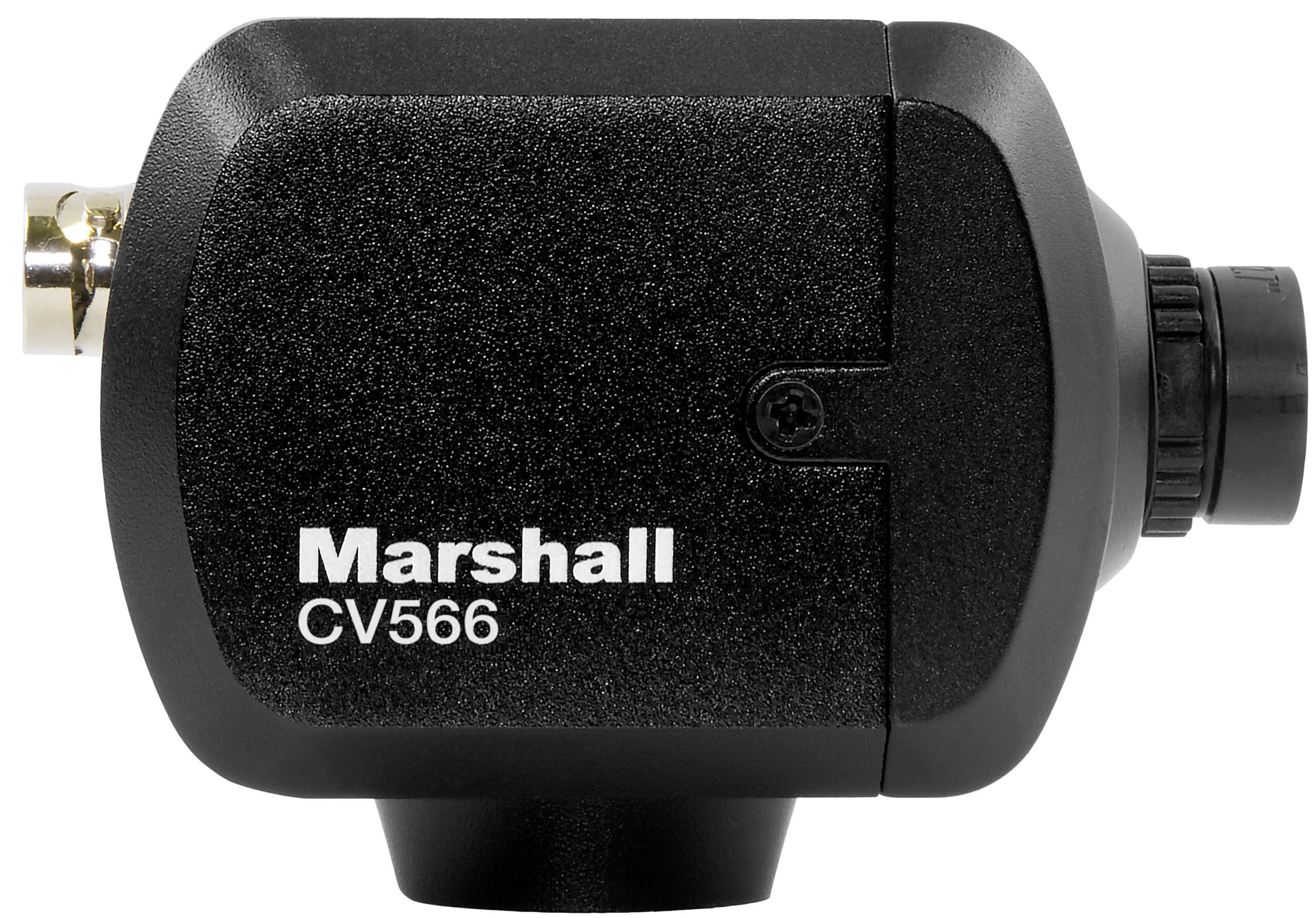

Thanks to tri-level Genlock synchronization, the Marshall CV566 camera integrates seamlessly into professional broadcast workflows. With a Sony 1/2.8″ sensor, the CV566 captures sharp, vivid images even in degraded lighting conditions.

Genlock tri-level sync synchronization enables the CV566 to be integrated into broadcast environments and allows seamless synchronization of multiple cameras of any brand.

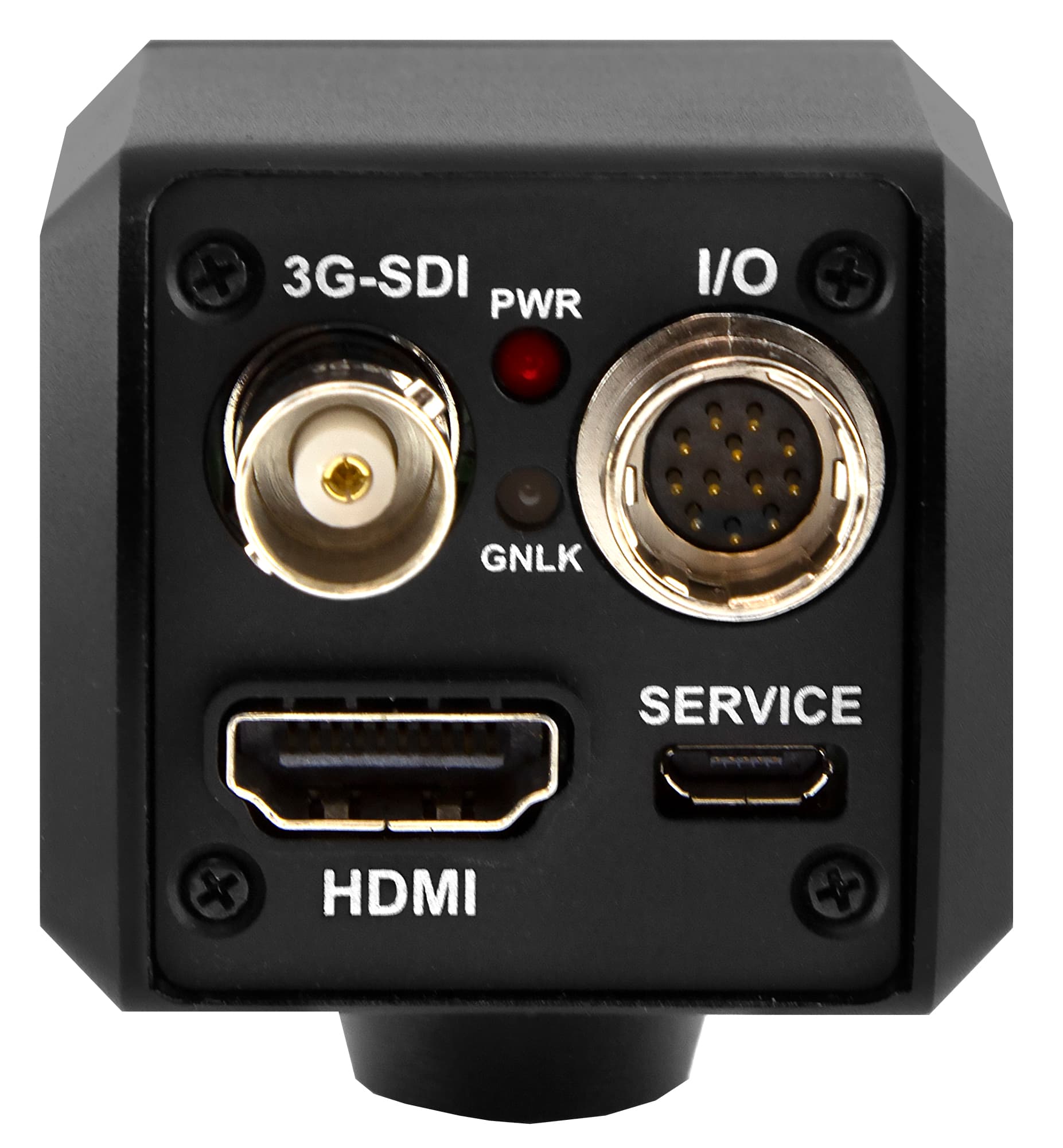

Dual 3G-SDI & HDMI outputs deliver 1920x1080p, 1920x1080i & 1280x720p video at up to 60 frames per second. Additional camera inputs and outputs are available via the included breakout cable, including an external 3.5mm microphone input.

A wide selection of M12 lenses complements the included 4.0mm M12 lens, allowing users to choose the perfect lens for any scenario. The CV566 is a rugged, professional mini camera with uses including sports broadcasts, reality TV and live streamed events.

SPECIFICATIONS

PACKAGE CONTENTS

• • 1x Marshall CV566 camera body
• • 1x camera breakout cable
• • 1x 4.0mm M12 lens
• • 1x power supply (PSU)
