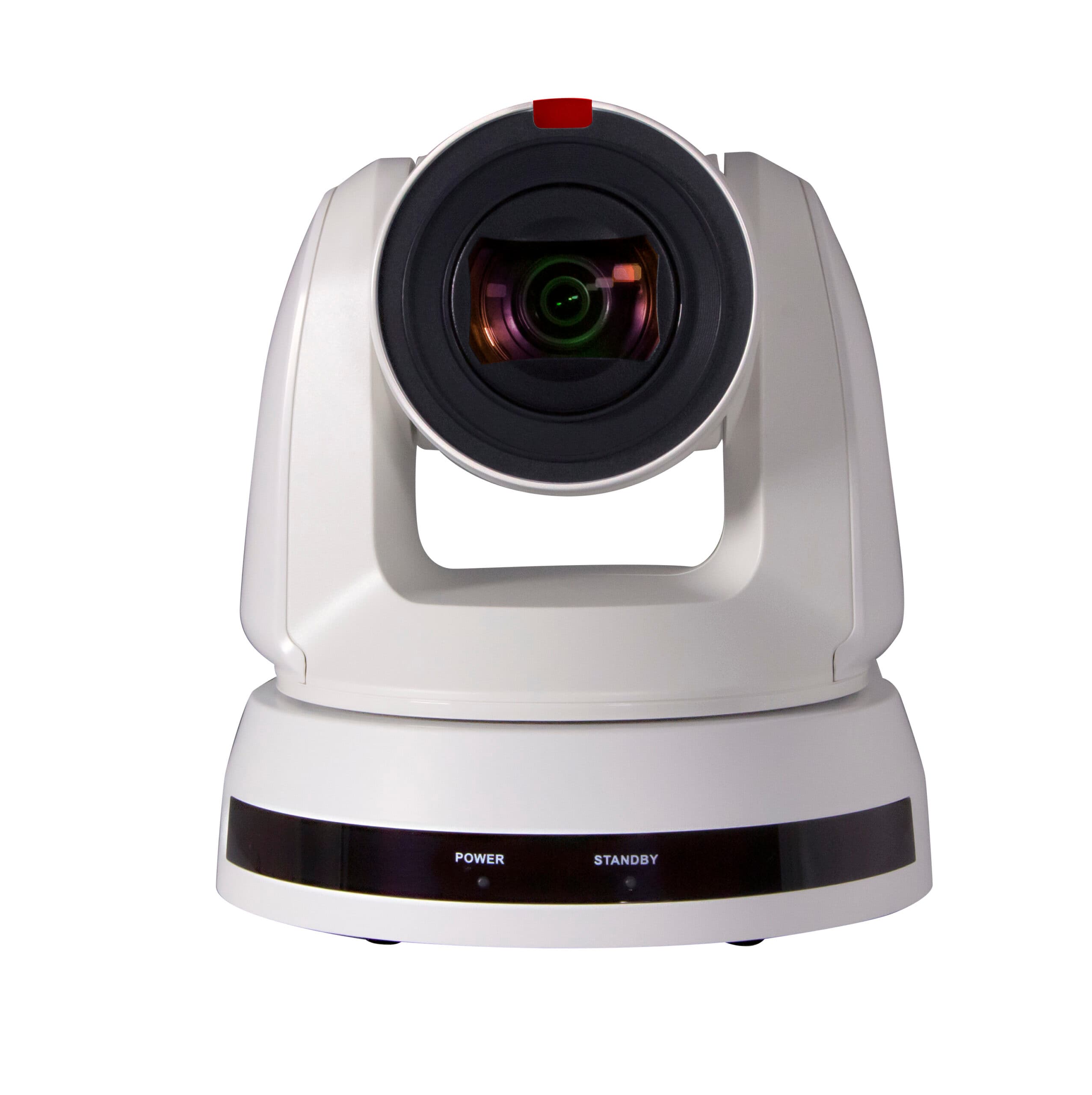

Marshall Electronics CV630 HD 25x PTZ kamera

OVERVIEW

Key Features:

• • 8MP 1/2.5″ sensor
• • 25X optical zoom (4.6~120.5 mm) with a nearly 68° AOV at its widest
• • Simultaneous 3GSDI, HDMI and IP outputs
• • Simultaneous pan, tilt and zoom
• • H.265 (HEVC) and H.264 (triple-stream) network outputs
• • IP formats: RTSP, RTMP, RTMPS, MPEG-TS, SRT, Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
• • 3840x2160p, 1920x1080p, 1280x720p and 1920x1080i
• • Stereo audio input embedding (mic or line level)
• • PoE+ (IEEE802.3at), video and control over a single Ethernet cable
• • 340° pan range, 120° tilt and 25X zoom
• • Front tally light
• • Support for the Free-D protocol and CGI protocol commands

High-Performance Video Output

The CV630-BI and CV630-WI are powered by an advanced 8-megapixel 1/2.5″ sensor that delivers exceptional Ultra-HD 3840x2160p video quality. These cameras also support versatile resolutions, including 1920x1080p, 1280x720p and 1920x1080i, ensuring optimal performance across a variety of applications.

Versatile Camera Positioning

The CV630-BI and CV630-WI cameras are equipped with synchronous pan, tilt and zoom motors that deliver smooth, quiet camera movements for precise positioning. With a powerful 25x optical zoom (4.6 mm to 120.5 mm), these cameras offer a nearly 68-degree angle of view at the widest setting, making them ideal for capturing detailed shots in both close-up and wide-angle settings.

Simultaneous Network and Streaming Outputs

The CV630-BI and CV630-WI offer multiple simultaneous video streams via HDMI, 3G-SDI and triple-stream IP (H.265/H.264). In addition, they support stereo audio input embedding on all available outputs. With PoE+ (Power-over-Ethernet), integrators can rely on a cost-effective and simplified installation process that combines power, video and control over a single cable.

Flexible Control Options

The CV630-BI and CV630-WI cameras are designed for user convenience, allowing control of iris, shutter, white balance, focus, pan/tilt speeds and other functions. These functions can be managed using the IR remote control, network video management software (VMS) or the RS-232/RS-422 interface with support for industry-standard protocols, including Visca, Visca over IP, Pelco and Onvif.

The cameras are also compatible with the Marshall VS-PTC-300 PTZ camera controller, which offers intuitive control of pan/tilt/zoom, speeds, white balance and other functions using easy-to-use single-action rotary knobs and rocker controls.

SPECIFICATIONS

PACKAGE CONTENTS

• • 1x Marshall CV630-BI/WI PTZ camera body
• • 1x IR remote control
• • 1x power supply (PSU)
• • 1x US power cord, 1x EU power cord, 1x UK power cord
• • 1x RS-422 connector
• • 1x metal plate A
• • 1x metal plate B
• • 1x M3 screw set
