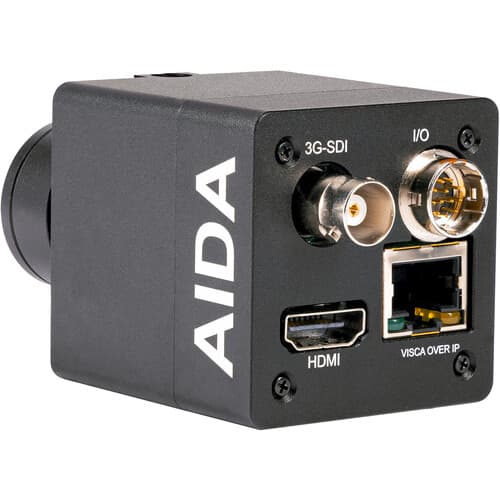

Genlock SDI Kamera AIDA GEN3G-IPC-200

Name: Genlock SDI Kamera AIDA GEN3G-IPC-200
Brand: AIDA Imaging
SKU: ad039
Price: 1161.60 EUR
Availability: InStock

SKU: ad039

Jedna z nejlevnějších SDI kamer na trhu podporující tri-level sync (genlock)

Full HDCSSDIHDMI

From 1 161,60 €

Price incl. 21% VAT

excl. VAT 960 €

Genlock SDI Kamera AIDA GEN3G-IPC-200—

1 161,60 €excl. VAT 960 €

In stock at our supplier — ships within 2–3 business days

Key specs

Product description

LINK TO MANUFACTURER'S WEBSITE

• Full HD Progressive Scan sensor captures sharp and vivid colors in various lighting conditions
• Advanced digital image processor delivers vivid and detailed images using WDR, white balance, and noise reduction
• Motion-compensated temporal noise reduction filter ensures effective noise reduction for moving video without blur
• Tri level sync Gen-lock synchronizes GEN3G cameras and other system components for seamless switching between sources
• seamless 3G/HD-SDI & HDMI
• Compatible with other industry-leading products, compliant with the SMPTE 424M/292M standard
• Self-Adaptive Resolution function instantly locks onto your reference signal
• VISCA over IP enables easier communication over Ethernet, alongside traditional RS485 communication

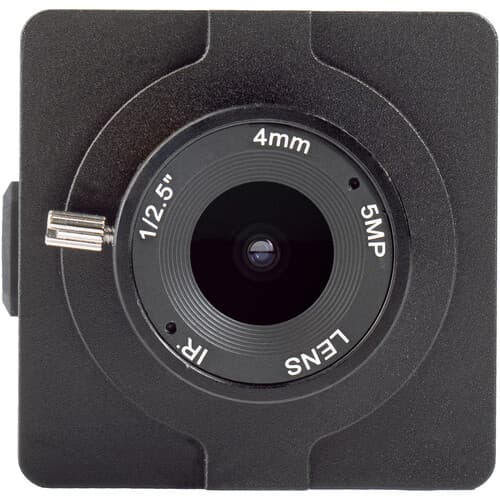

• Interchangeable lens design enables compatibility with CS and C-mount auto-iris lenses
• Flawless embedded audio transmission over SDI & HDMI
• Camera parameters controllable via our free AIDA IPC Program
• Versatile, compact, and rugged design

Image Sensor:	1/2.8 inch Progressive CMOS
Sensor Size:	5.641mm x 3.216mm (16:9)
Effective Pixels:	Horizontal: 1920, Vertical: 1080
Pixel Size:	2.9 μm (H) x 2.9 μm (V)
Resolution:	1080p & 1080i: 1920 x 1080 \| 720p & 720i: 1280 x 720
Resolution Rate:	1080p 60/59.94/50/30/29.97/25/24/23 fps \| 1080p 60/59.94/50 fps \| 720p 60/59.94/50 fps

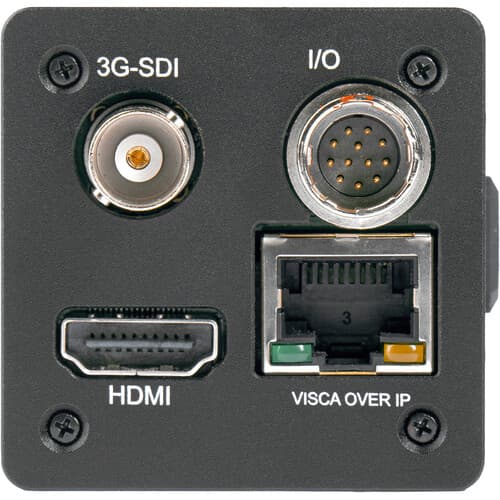

Output:	HD-SDI/3G-SDI (1BNC), HDMI 1.3a
Color Space:	4:2:2 (YCbCr) 10bit
Min. Illumination:	0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
White Balance:	Auto & Manual (9,000 K - 11,000 K)

Lens:

C/CS Mount (default 4mm HD lens)

Input:	3.5mm Line Input via I/O cable
Sample Rate:	16/24/32 Bits

SMPTE:

SMPTE 292M, SMPTE 424M

Gen-lock:

External Tri-Level Input (IN / OUT)

Camera Control:	RS-485, OSD button
Operating Temperature:	0°C - 40°C

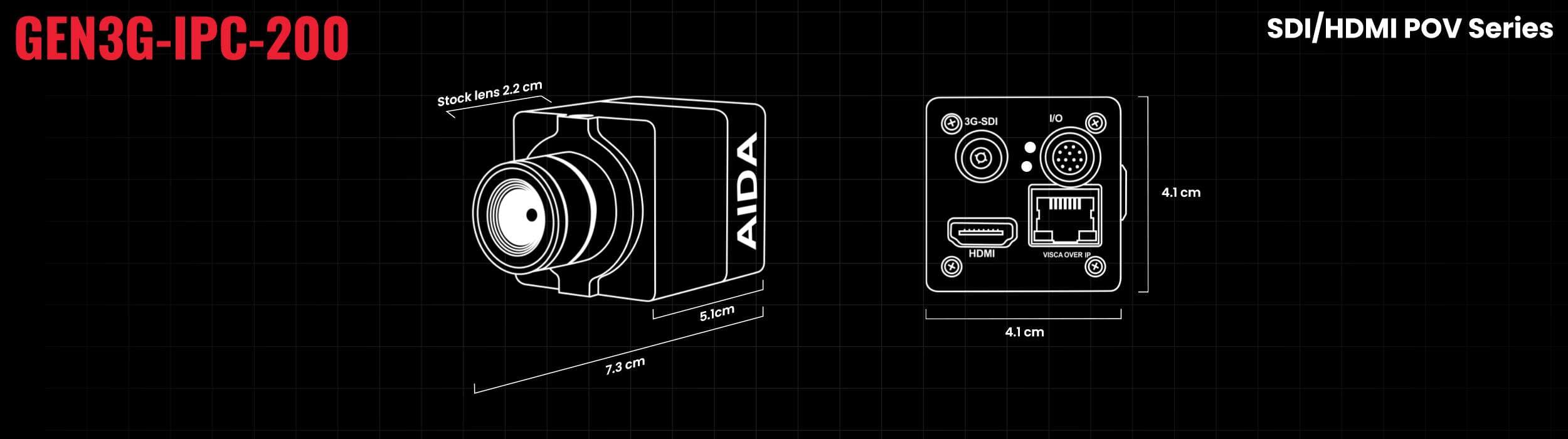

Dimensions:	88.90mm x 44.45mm x 44.45mm (with default 4mm lens)
Weight:	170g (with default 4mm lens)
Power:	12VDC (+9 - +15VDC) (optional PoE+ injector)

Specifications are subject to change without prior notice.
