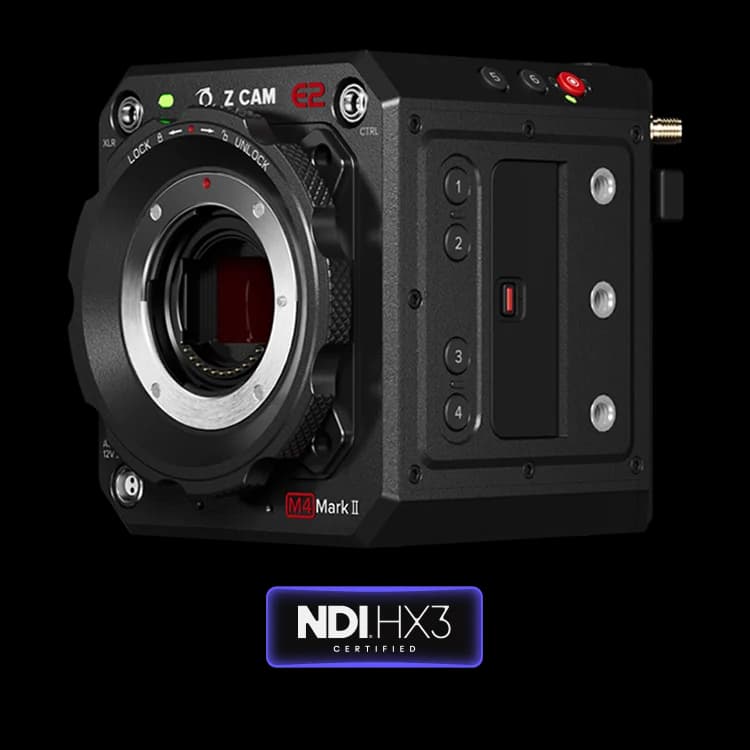

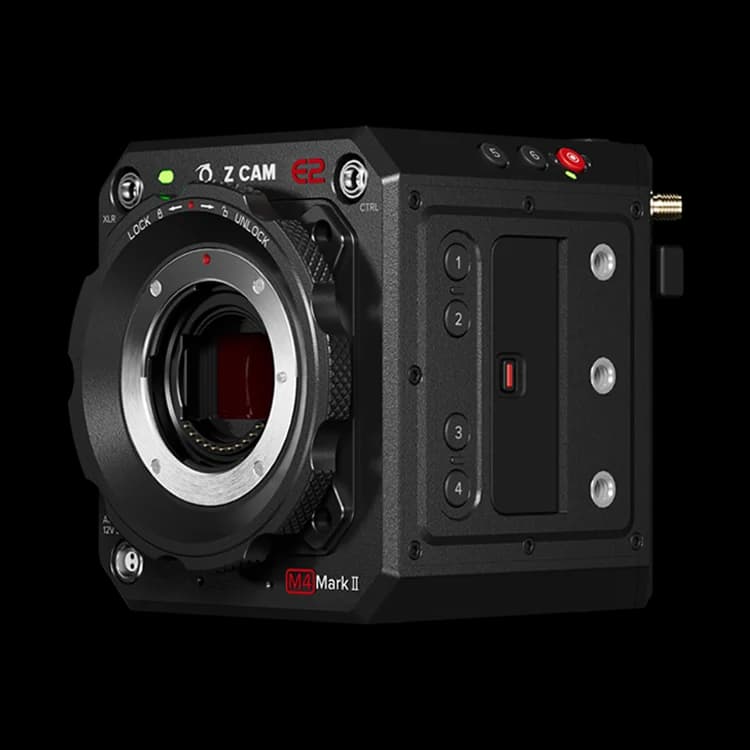

Z CAM E2-M4s Mark II 4K Professional Camera (with NDI)

The Z CAM E2-M4s Mark II is a professional 4K camera with a Micro 4/3 sensor (21.63 mm diagonal, 10.71 MP), a dynamic range of 13–15 stops in Z-Log2 (up to 16 stops with WDR activated), and dual native ISO 500/2500. It shoots C4K (4096×2160) at up to 120 fps, in C4K 2.4:1 mode at up to 150 fps, and Full HD at up to 240 fps — internally to H.265/H.264, ProRes 422 (Proxy to HQ), or ZRAW on CFexpress Type B cards, plus ProRes RAW (Atomos Ninja V) or BRAW via HDMI.

Compared to the base M4, the M4s variant (model E1513N) adds the Z CAM PixelLink interface for perfectly precise synchronization of multiple cameras in a daisy-chain setup and built-in certified 10-bit NDI for networked productions with minimal latency. EzLink synchronization over Ethernet, an open API, and 12-axis color correction for matching multiple cameras and optimizing skin tones come as standard.

Connectivity consists of HDMI 2.0 (output up to 4K DCI 60p 10-bit 4:2:2), 3G-SDI, LTC timecode via BNC, USB-C 3.0, Gigabit Ethernet with PoE+ power, and 5 GHz Wi-Fi. The all-metal fanless body weighs a mere 1.06 kg, the MFT mount with active lock is interchangeable, and power is provided by Mini V-Lock batteries, DC 12–18 V, or PoE+.

• Sensor: Micro 4/3 CMOS, 21.63 mm diagonal, 10.71 MP
• Dynamic range: 13–15 stops (Z-Log2), 16 stops with WDR
• Dual native ISO 500 / 2500
• Recording: C4K up to 120 fps, C4K 2.4:1 up to 150 fps, Full HD up to 240 fps
• Codecs: H.265/H.264 (10bit), ProRes 422 Proxy/LT/422/HQ, ZRAW; ProRes RAW / BRAW via HDMI
• Built-in 10bit NDI and Z CAM PixelLink synchronization (model E1513N)
• Interfaces: HDMI 2.0, 3G-SDI, LTC timecode (BNC), USB-C 3.0, LANC
• Network: Gigabit Ethernet with PoE+, 5 GHz Wi-Fi, IP streaming
• Media: CFexpress Type B (exFAT)
• MFT mount with active lock (interchangeable), 1.06 kg body
