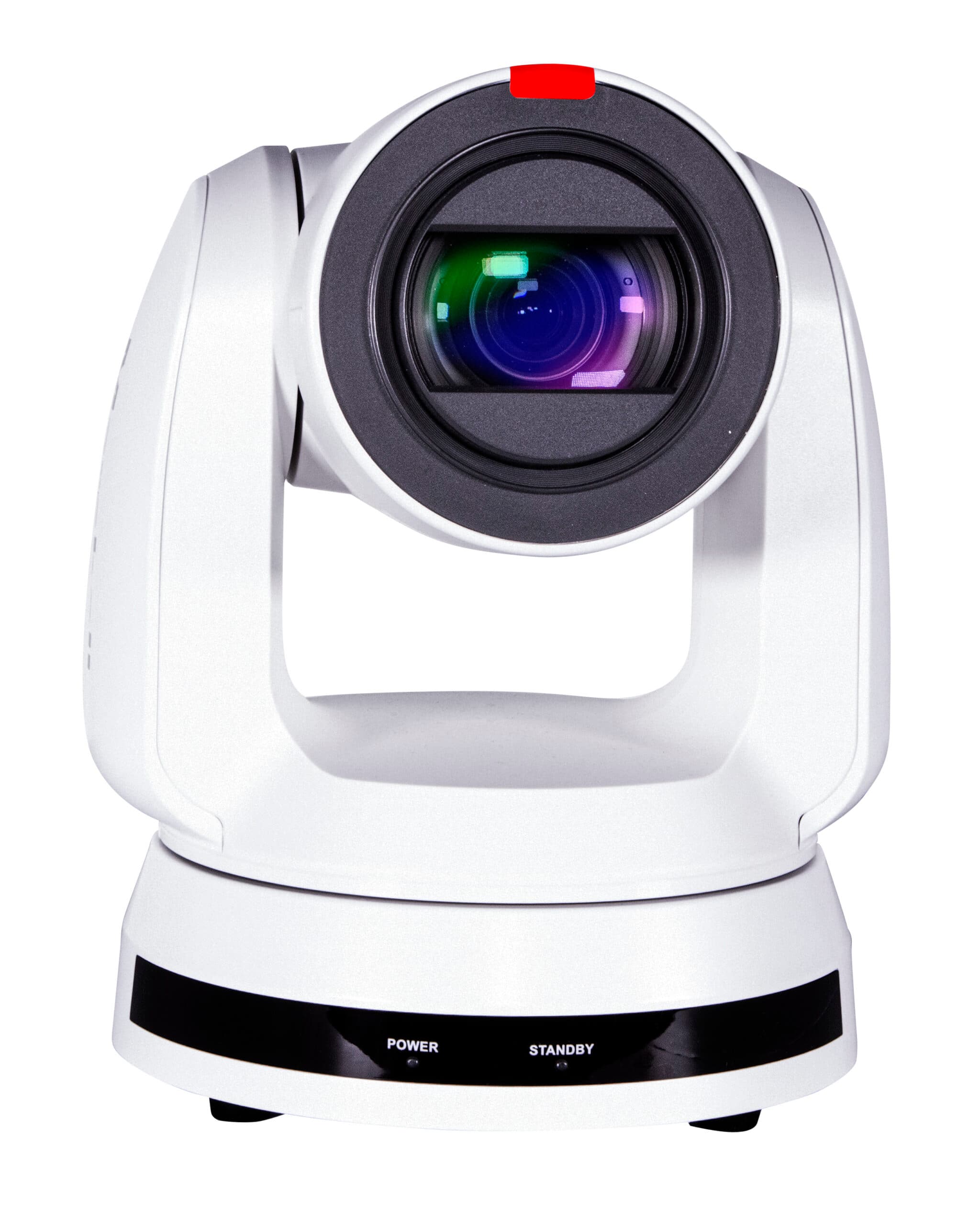

Marshall Electronics CV730 4K60 30x PTZ kamera
SKU: CV730-BKVlajková loď 4K PTZ kamer s 12G-SDI rozhraním a masivním 30x zoomem pro nekompromisní broadcast kvalitu.
4K6030× zoomSDIHDMIIPUSBPrice incl. 21% VAT
excl. VAT 3 040 €- Resolution
- 4K @ 60 fps
- Sensor size
- 1/1.8"
- Zoom
- 30×
- Interface
- SDI · HDMI · IP · USB
- Authorized distributor — full manufacturer warranty
- Shipped from Brno across the EU
- B2B purchase on invoice
Need advice or a quote? +420 910 124 151 · [email protected]
OVERVIEW
Key Features:
- • 3840×2160 up to 60p and HD (1920×1080/1280×720) up to 60p
- • Simultaneous 12G-SDI, HDMI, IP Ethernet and USB 3.0 outputs
- • H.264 & H.265 encoding over IP
- • 30x optical zoom (6.5 mm – 202 mm)
- • Remote control via RS-232/RS-422 protocols, Ethernet (VISCA over IP) or the included IR remote control
- • 3.5mm audio input for an external microphone
Product Introduction:
The CV730 delivers crystal-clear images in UHD resolution up to 60p using simultaneous 12G-SDI, HDMI 2.0 and IP outputs. The high-quality 8.5MP 1/1.8″ UHD sensor is paired with precise, smooth pan & tilt motors along with broadcast-style remote adjustment of settings via RS232, RS422 or IP using universal protocols.
It features a precise 30x optical zoom that starts just below a 65° horizontal angle of view at 6.5 mm and reaches up to 202 mm, making it possible to capture a tight head-and-shoulders shot from long distances.
Run a single cable to the camera for all functions (power, control, audio, video), or use Ethernet for PoE+/preview and the other outputs (12G-SDI/HDMI) for simultaneous streaming, production or archiving workflows.
SPECIFICATIONS
Sensor
| Sensor type: | 1/1.8″ 8.5 Megapixel |
Resolutions and Frame Rates
| UHD 3840x2160p: | 25, 29.97, 30, 50 & 59.94 |
| HD 1920x1080p: | 25, 29.97, 30, 50 & 59.94 |
| HD 1920x1080i: | 50 & 59.94 |
| HD 1280x720p: | 25, 29.97, 30, 50 & 59.94 |
Input and Output Connectors
| Video output: | 1x 12G-SDI, 1x HDMI 2.0, 1x IP Ethernet (RJ45) & 1X USB 3.0 |
Lens
| Focal length: | 6.5 mm to 202 mm |
| Optical zoom ratio: | 30x |
| Max. aperture: | f/1.55 to f/2.8 |
Audio
| Audio input: | 3.5mm Stereo |
Control Protocol
| Control protocol: | RS-232/RS-422 & VISCA over IP |
PACKAGE CONTENTS
- • 1x Marshall CV730 PTZ camera body
- • 1x IR remote control
- • 1x power supply (PSU)
- • 1x power cord (US, EU, UK)
- • 1x metal mounting plate A
- • 1x metal mounting plate B
- • 1x M3 screw set
