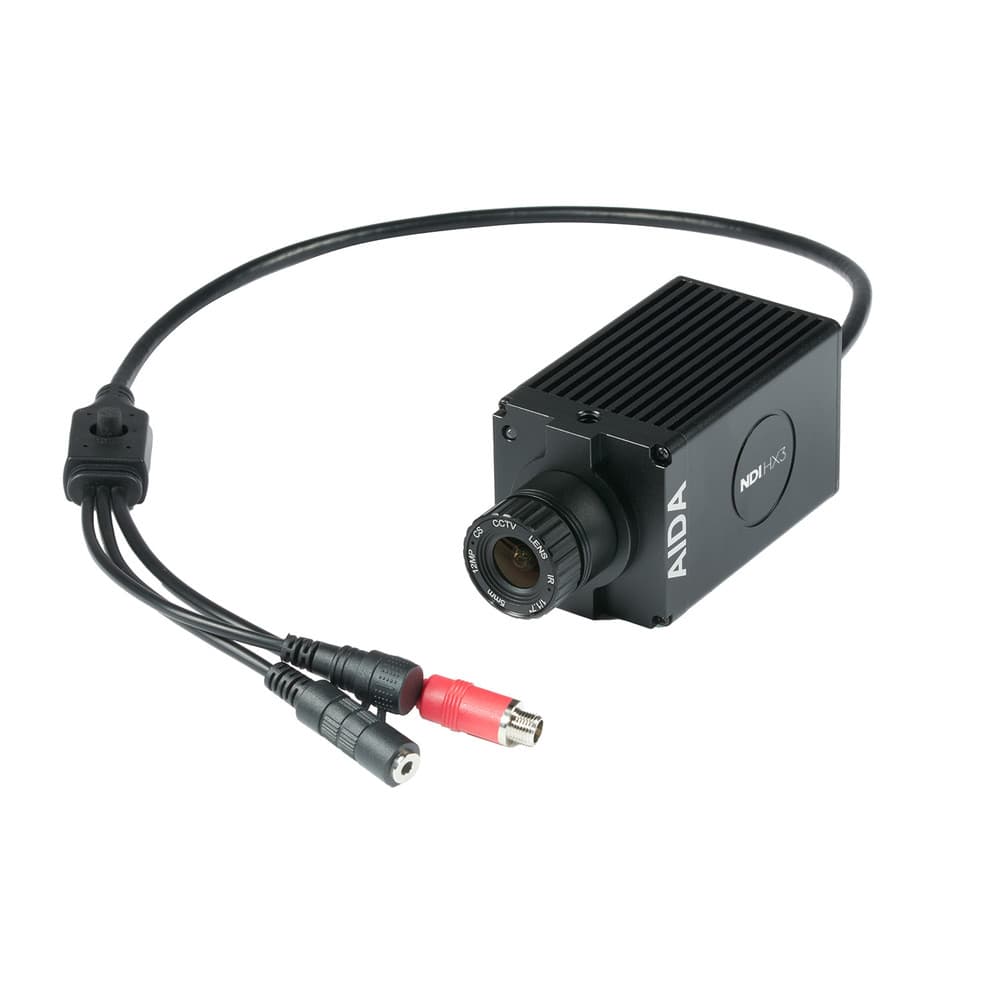

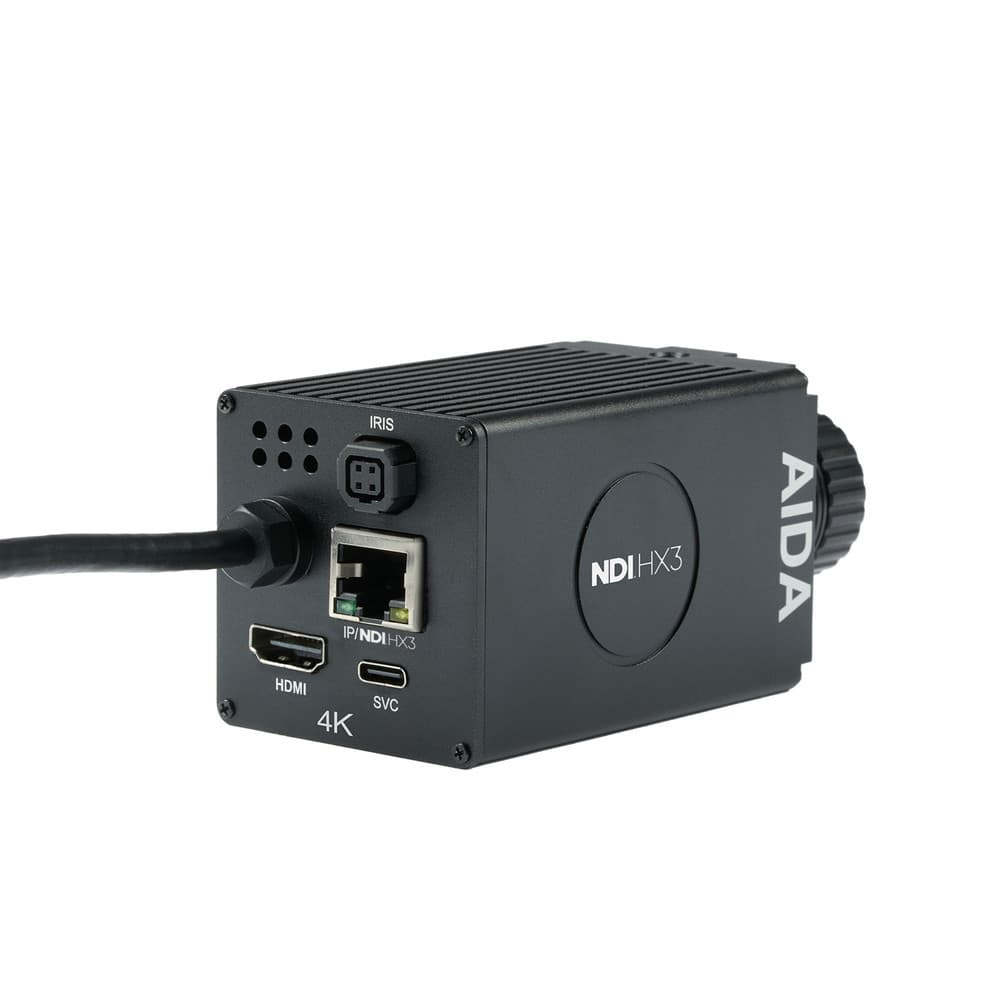

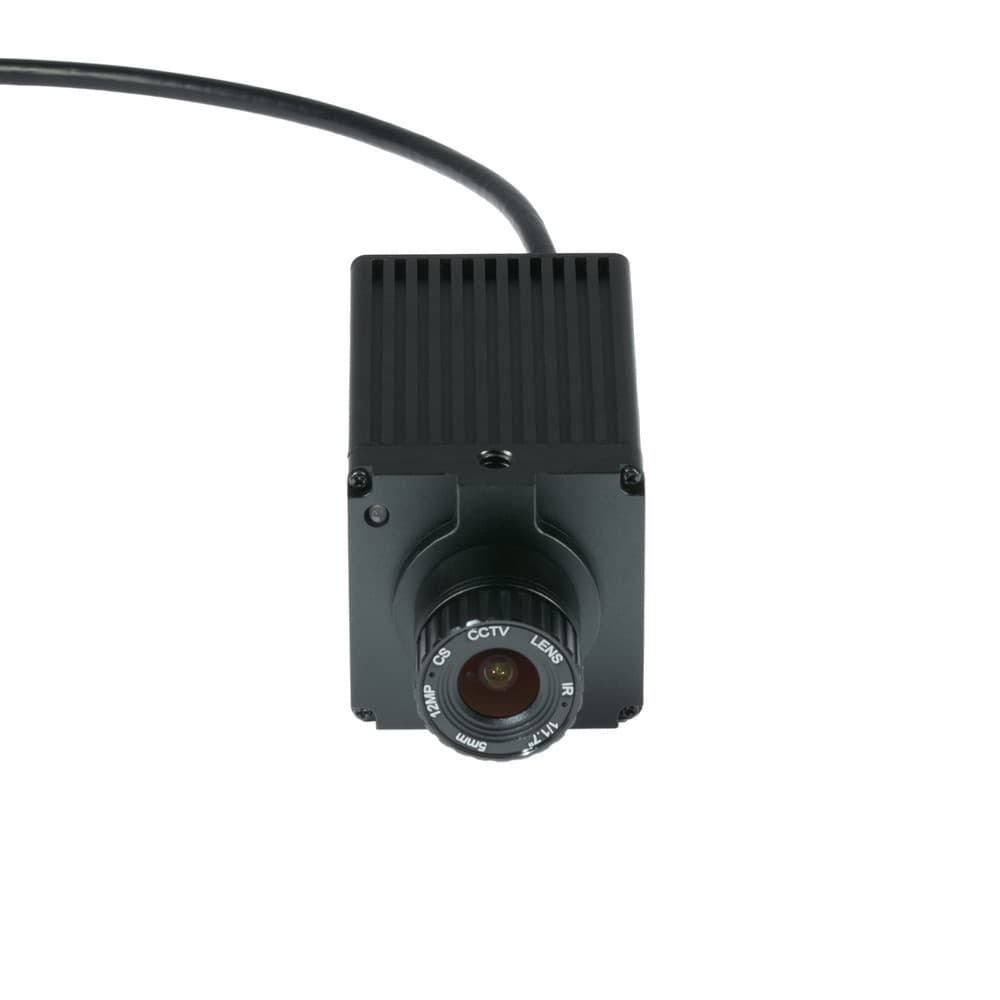

POV NDI 4K Kamera AIDA UHD-NDI3-300
SKU: ad036Kompaktní 4K POV kamera s rozhraním NDI HX3 a HDMI pro profesionální živé přenosy. Podporuje rozlišení až 2160p 60fps a napájení přes PoE+.
4K60NDI®CSHDMIIPPrice incl. 21% VAT
excl. VAT 1 070 €- Resolution
- 4K @ 60 fps
- Sensor size
- 1/2.8"
- Mount
- CS
- NDI
- Yes
- Interface
- HDMI · IP
- Authorized distributor — full manufacturer warranty
- Shipped from Brno across the EU
- B2B purchase on invoice
Need advice or a quote? +420 910 124 151 · [email protected]
LINK TO MANUFACTURER'S WEBSITE
MAIN FEATURES
- • 4K 1/2.8" Progressive Scan CMOS sensor capable of capturing 2160p 60fps over NDI®|HX and HDMI
- • HX 3 compatible camera with output up to 1080p 60fps at 60mb, 4 times more than HX! Looks even better with the 4K CMOS sensor than HD!
- • Available web interface for direct streaming to social platforms and control of image parameters over IP
- • Versatile design with top and bottom tripod mounts for unique shots
- • The camera supports PoE+. A single cable is all you need for power, control, and video!
- • Small dimensions and rugged design enable all types of video streaming
- • Small tally light on the front of the camera to signal a live broadcast
SPECIFICATIONS
VIDEO
| Image Sensor: | 1/2.8" Progressive CMOS |
| Effective Pixels: | Horizontal: 3840, Vertical: 2160 |
| Pixel Size: | 2.0 μm (H) x 2.0 μm (V) |
| Resolution: | 2160p, 1080p, 1080i, 720p |
| Resolution Rate: | NDI HX/HDMI ONLY: 2160 60p/59.94/50p/30p/29.97p/25p/24p HX 3: 1080 60p/59.94/50p/30p/25p/24p 1080 60i/59.94i/50i 720 60p/59.94p/50p |
| Output: | HDMI/IP (NDI HX3/SRT/RTMP/RTSP) |
| Color Space: | 4:2:2 (YCbCr) 10bit |
| Min. Illumination: | 0.2Lux (day), 0.1Lux (night) |
| White Balance: | Auto & Manual (9000 - 11,000 K) |
LENS
| Lens: | 12MP 5mm CS Mount HD Lens FOV: 78° |
AUDIO
| Audio Embed: | Embed via HDMI and IP streaming |
| Input: | 3.5mm Line Input |
STANDARD
| IP Protocol: | UDP|IP, RTSP|RTMP, SRT, NDI|HX |
PHYSICAL PARAMETERS
| Camera Control: | Protocol: VISCA Over IP |
| Operating Temperature: | 0°C - 40°C |
| Dimensions: | 85mm x 49mm x 49mm |
| Weight: | 350g |
| Power: | 12VDC (+9 - +15VDC), PoE+ (IEEE802.3at standard) |
NDI® is a registered trademark of Newtek, Inc.
Specifications are subject to change without prior notice.
You might also like
CV355-27X-ND3Marshall Electronics CV355-27X-ND3 4K 27x NDI Box kameraFull HDNDI®27× zoomOn order2 401,85 €
excl. VAT 1 985 €
CV355-27X-IP Marshall Electronics CV355-27X-IP 4K 27x Zoom Box kameraFull HD27× zoomSDIOn order2 171,95 €
excl. VAT 1 795 €
CV420eMarshall Electronics CV420e 4K60 digitální PTZ kamera4K60HDMIIPOn order1 566,95 €
excl. VAT 1 295 €
CV730-BKMarshall Electronics CV730 4K60 30x PTZ kamera4K6030× zoomSDIOn order3 678,40 €
excl. VAT 3 040 €
CV730-BHNMarshall Electronics CV730 4K60 30x NDI PTZ kamera4K60NDI®30× zoomOn order4 440,70 €
excl. VAT 3 670 €
CV374Marshall Electronics CV374 kompaktní NDI|HX3 4K UHD kamera4K60NDI®CSOn order1 318,90 €
excl. VAT 1 090 €
CV370Marshall Electronics CV370 kompaktní NDI|HX3 HD kameraFull HDNDI®CSOn order1 029,71 €
excl. VAT 851 €
CV504Marshall Electronics CV504 HD mini kameraFull HDM12SDIOn order637,67 €
excl. VAT 527 €
CV508Marshall Electronics CV508 mini kamera SDI/HDMIFull HDM12SDIOn order712,69 €
excl. VAT 589 €
CV566Marshall Electronics CV566 Genlock mini kameraFull HDM12SDIOn order888,14 €
excl. VAT 734 €

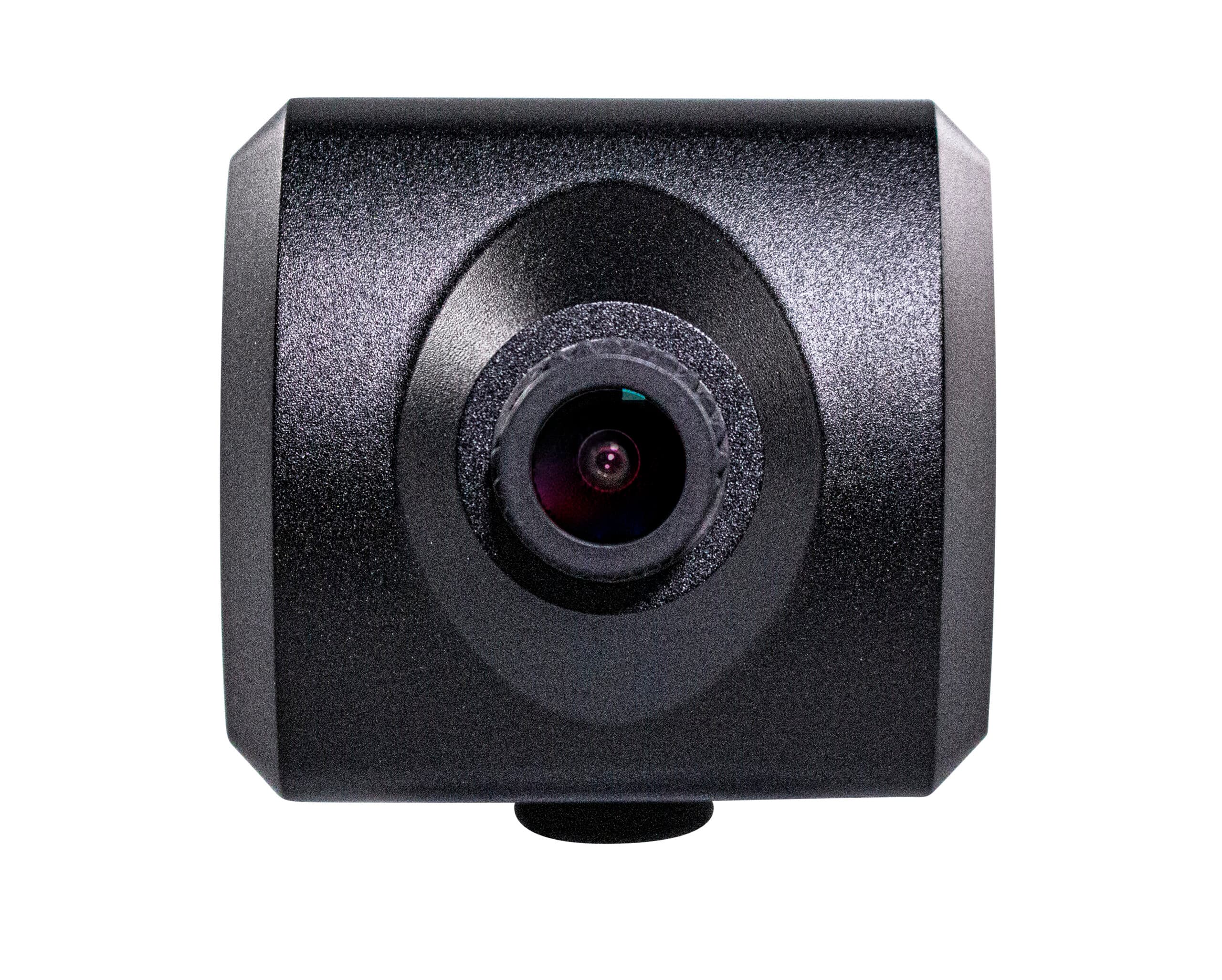

CV574Marshall Electronics CV574 NDI|HX3 4K UHD mini kamera4K60NDI®M12On order1 349,15 €
excl. VAT 1 115 €

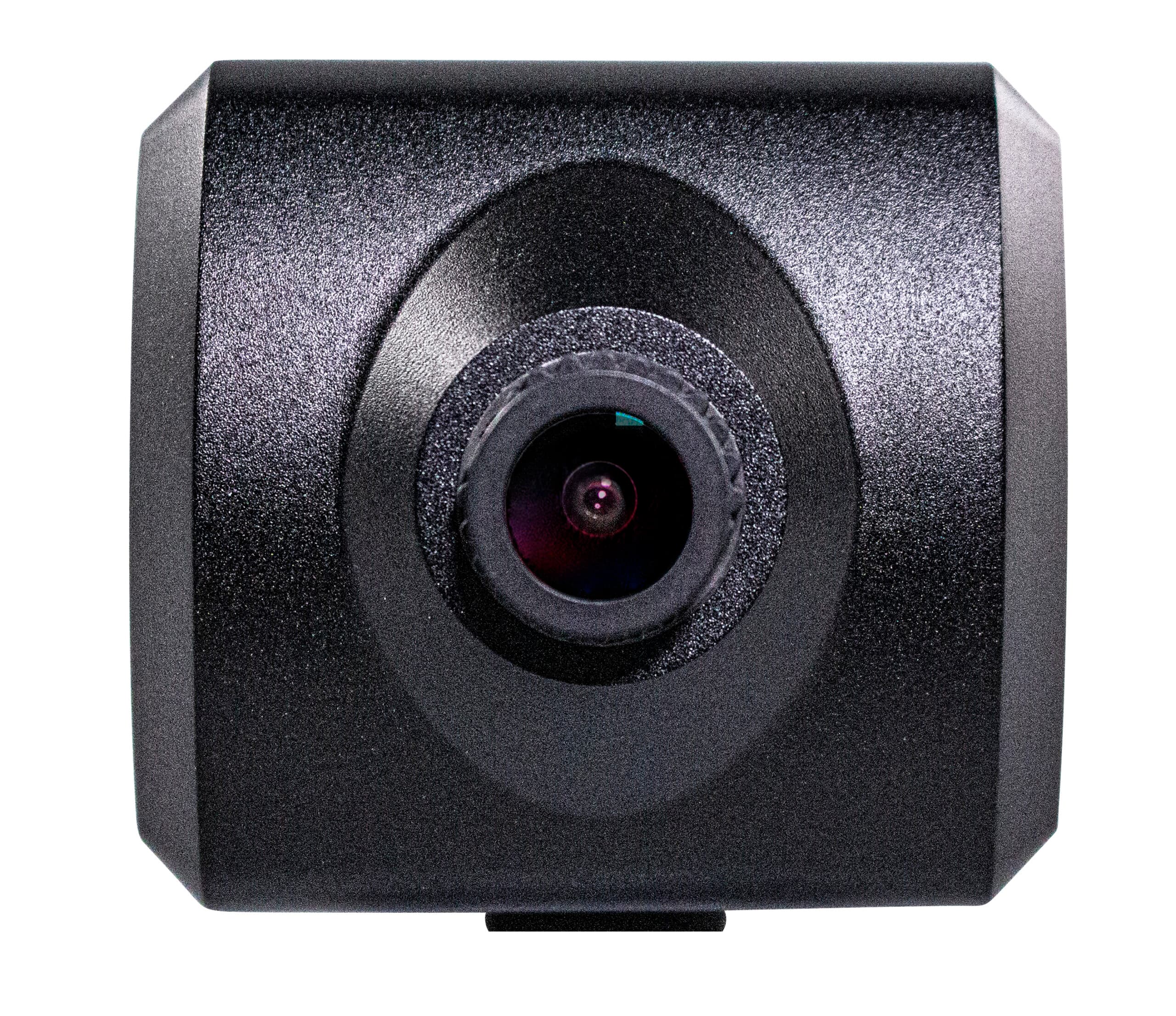

CV570Marshall Electronics CV570 NDI|HX3 HD mini kameraFull HDNDI®M12On order1 015,19 €
