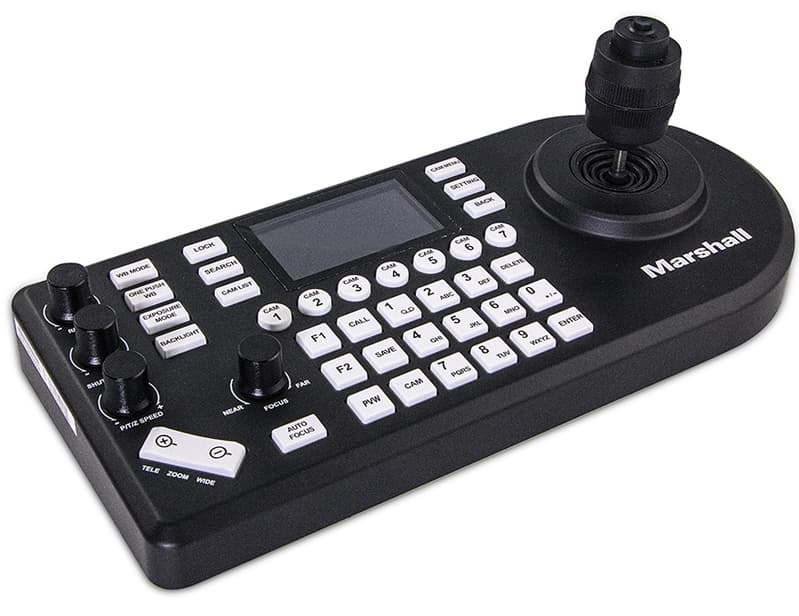

Marshall Electronics VS-PTC-300 PTZ NDI/IP kontrolér s náhledovou obrazovkou

Name: Marshall Electronics VS-PTC-300 PTZ NDI/IP kontrolér s náhledovou obrazovkou
Brand: Marshall Electronics
SKU: VS-PTC-300
Price: 1566.95 EUR
Availability: InStock

SKU: VS-PTC-300NDI®IP

From 1 566,95 €

Price incl. 21% VAT

excl. VAT 1 295 €

Marshall Electronics VS-PTC-300 PTZ NDI/IP kontrolér s náhledovou obrazovkou—

1 566,95 €excl. VAT 1 295 €

Ordered from supplier — typically delivered in 10–15 business days, we'll confirm the exact date

Key specs

NDI: Yes
Interface: IP

Authorized distributor — full manufacturer warranty
Shipped from Brno across the EU
B2B purchase on invoice

Need advice or a quote? +420 910 124 151 · [email protected]

Product description

LINK TO MANUFACTURER'S WEBSITE

KEY FEATURES

• Controls cameras simultaneously over IP, NDI® and serially via RS-232/RS-422 — so cameras with different control types can be mixed on a single network.
• Supported protocols: VISCA, VISCA over IP, PELCO-D/P, ONVIF and NDI®.
• Capacity of 7 cameras via RS-232, 14 cameras via RS-422 and 255 cameras via NDI®/IP, switchable from one desk.
• A built-in 3" LCD screen shows a live preview of the selected camera from an RTSP, ONVIF or NDI® HX2/HX3 stream.
• Automatic discovery of available IP and NDI® cameras on the network, including easy address assignment.
• Dedicated rotary knobs for iris, shutter and gain, white balance, R/B gain, focus and pan/tilt/zoom speed.
• A high-quality four-axis joystick complemented by a professional seesaw zoom rocker.
• Up to 256 stored presets including image parameters, and 6 assignable ASSIGN function buttons.
• Tally indication in Normal, On-Air and Contact modes; multi-color button backlighting guides the operator to active functions.
• 12 V DC power or PoE over Ethernet; firmware can be updated via USB or from the web interface.

Product Introduction:

The VS-PTC-300 is a desktop controller for an entire fleet of PTZ cameras. Compared to the compact VS-PTC-200, it mainly adds network control: in addition to serial RS-232/RS-422/RS-485, it also speaks the IP protocols VISCA over IP, ONVIF and NDI®, so older serially controlled cameras can be mixed with new IP and NDI® cameras on a single desk.

The second major difference is the preview screen — the 3" LCD shows a live image from the selected camera (RTSP, ONVIF, NDI® HX2/HX3), so the operator sees what they are adjusting without needing a multiview. There are also dedicated knobs for exposure, white balance, R/B gain and focus, ASSIGN buttons for quick functions (Home, Freeze, Flip, Auto-Track, Auto-Framing and more) and tally indication.

Capacity is 7 cameras via RS-232, 14 via RS-422 and 255 via NDI®/IP, with memory for up to 256 presets including image settings.

Compatibility: Marshall lists it as an accessory for the CV605-U3, CV612, CV620, CV625 (including NDI versions), CV630 and CV730 (including NDI versions) PTZ cameras and the CV355-27X-IP and CV355-27X-ND3 zoom block cameras. Via VISCA over IP, ONVIF and NDI® it can also handle other network cameras.

INTERFACES AND CONNECTORS

Display:	3" LCD, 360 × 640
Joystick:	4-axis (left/right, up/down, zoom)
Zoom control:	seesaw rocker switch
Rotary knobs:	pan/tilt and zoom speed, focus, R/B gain, iris / shutter / gain
Camera buttons:	7 direct buttons + 2 ASSIGN buttons
RS-232:	RJ45 × 1
RS-422:	RJ45 × 1
Ethernet:	RJ45 × 1 (PoE)
Baud rate:	2400 / 4800 / 9600 / 38400 / 115200 bps (RS-232 and RS-422)

NETWORK AND STREAMING

Protocols:	VISCA, VISCA over IP, ONVIF, NDI®
Preview:	RTSP, ONVIF, NDI® HX2, NDI® HX3
Number of cameras:	7 via RS-232, 14 via RS-422, 255 via NDI®/IP
VISCA addresses:	1 to 7
Presets:	256 in total, 100 sets for NDI®

POWER

Power:

DC 12 V (EIAJ-04 connector) or PoE

PHYSICAL PARAMETERS

Color:	black
Keypad:	backlit
Operating temperature:	0 °C to +40 °C
Storage temperature:	-20 °C to +60 °C
