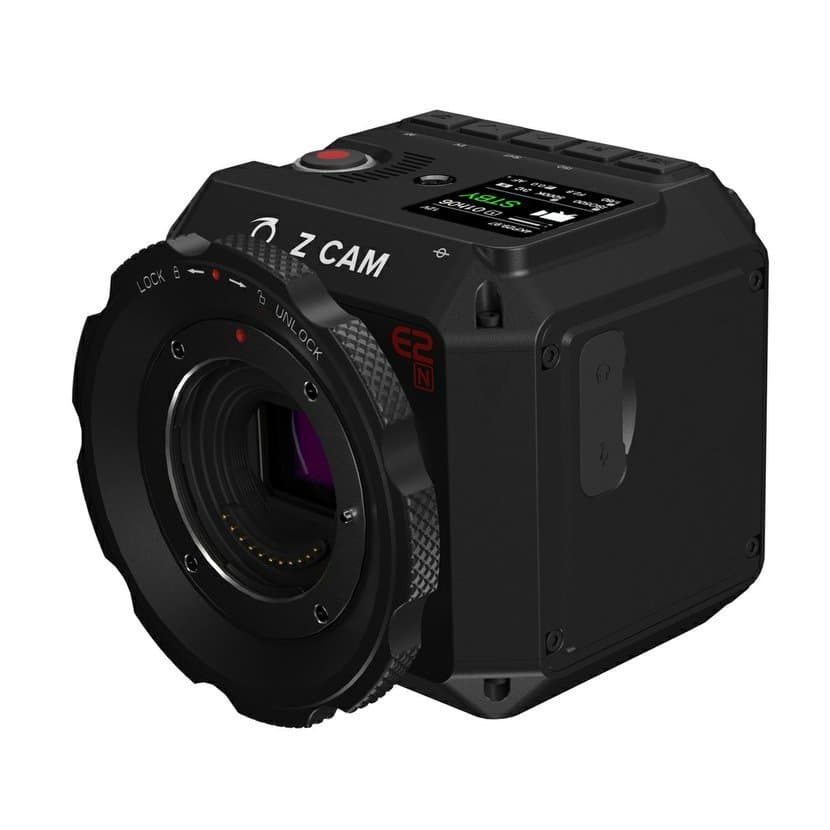

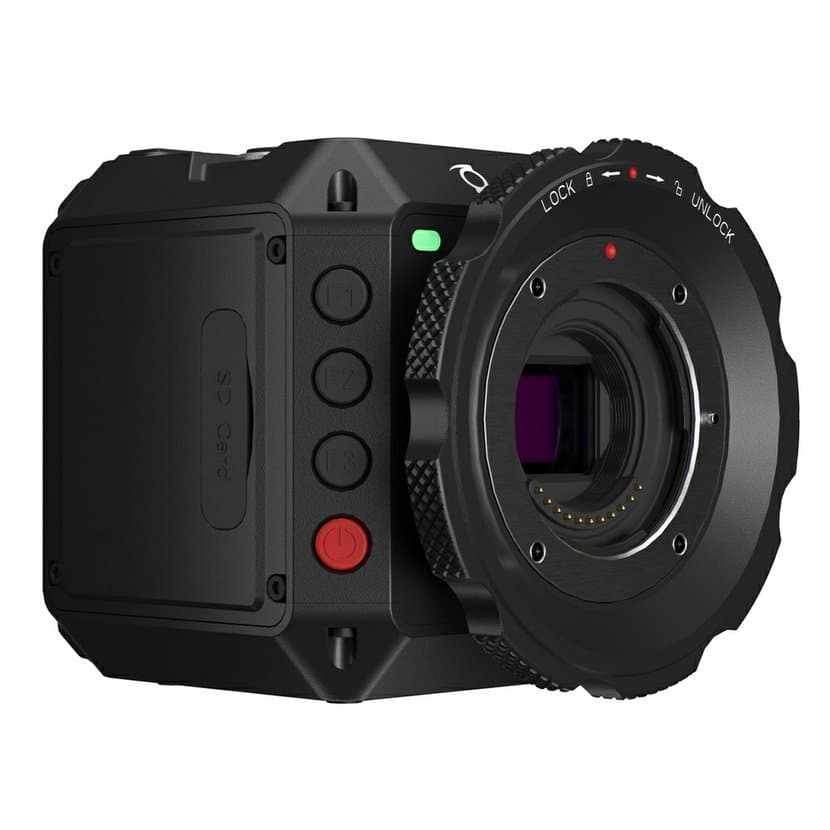

Z CAM E2N 4K NDI CAMERA

Z CAM E2N: 4K Production and Live Streaming Simplified with NDI®

The Z CAM E2N is a specialized 4K camera designed from the ground up for modern, IP-based production workflows. With native support for the latest NDI®|HX3 protocol, it can send high-quality, low-latency video directly to the network. This dramatically simplifies cabling and enables easy integration into live broadcasts, broadcast systems, or multi-camera studios. A single Ethernet cable is all it takes to carry video, audio, control, and power.

Key Features

• Native NDI®|HX3 support: Forget about complicated converters. The E2N sends a low-latency 4K signal directly to your network (compatible with NDI® and NDI®|HX). Ideal for software such as vMix, OBS, TriCaster, and more.
• Power over Ethernet (PoE+): Simplify your installation to the maximum. Thanks to PoE+ (802.3at) support, a single network cable is all you need for video transmission, camera control, and full power delivery.
• High-quality 4K image: The camera is equipped with a 4/3" CMOS sensor delivering high-quality 4K images at up to 60p. Thanks to dual native ISO (500/2500), it also performs excellently in challenging lighting conditions.
• Simultaneous recording and streaming: While streaming over NDI®, you can simultaneously record a backup 8-bit H.265/H.264 file to an affordable SDXC card directly in the camera.
• High-speed capture: In addition to 4K/60p, the camera can also record slow-motion footage in Full HD (1080p) at up to 240 fps.

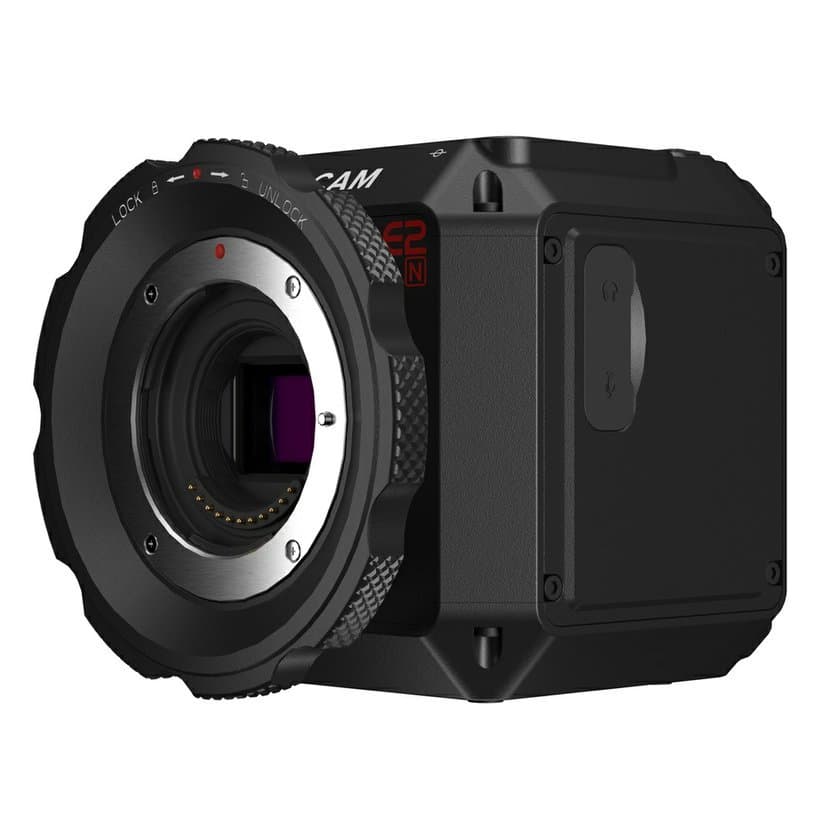

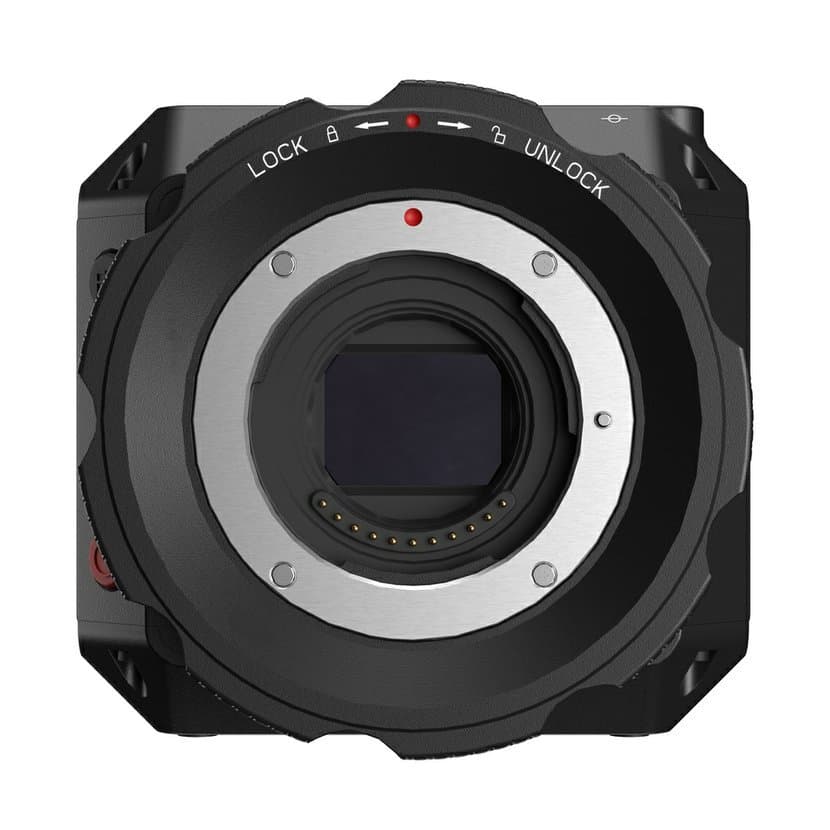

• Flexible MFT mount: The Micro Four Thirds mount with an active lock provides access to a wide range of compact and affordable lenses, making the camera an extremely versatile tool.

Technical Specifications

Sensor: 4/3" CMOS sensor, 10.71 MP
Lens mount: Micro Four Thirds (MFT) with active lock
Network protocol: NDI®|HX3 (compatible with NDI®|HX)
Resolutions and frame rates (recording):
- 4K @ 23.98 / 24 / 25 / 29.97 / 50 / 59.94 fps
- 3696x2772 @ 23.98 / 24 / 25 / 29.97 fps
- 1080p @ 23.98 / 24 / 25 / 29.97 / 50 / 59.94 / 120 / 240 fps
Dynamic range: 11.5 EV
Color depth (internal recording): 8-bit
Internal recording formats: H.265 / H.264
ISO: Auto, Manual (500 ~ 102400), Dual Native ISO: 500 / 2500

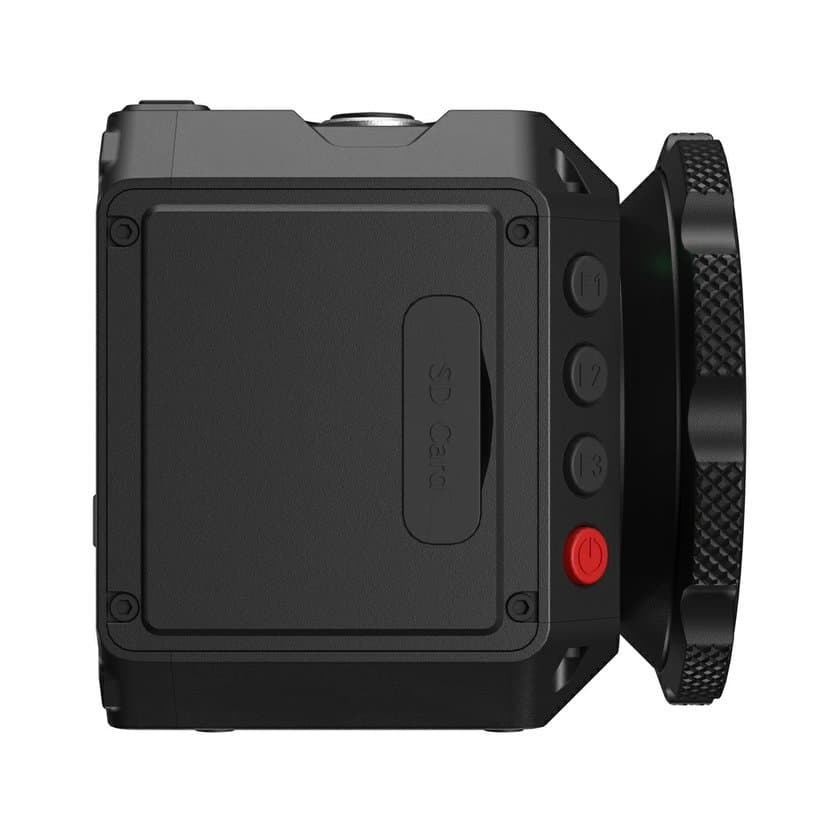

Recording media: SDXC card (UHS-I Speed Class 3, U3 recommended)

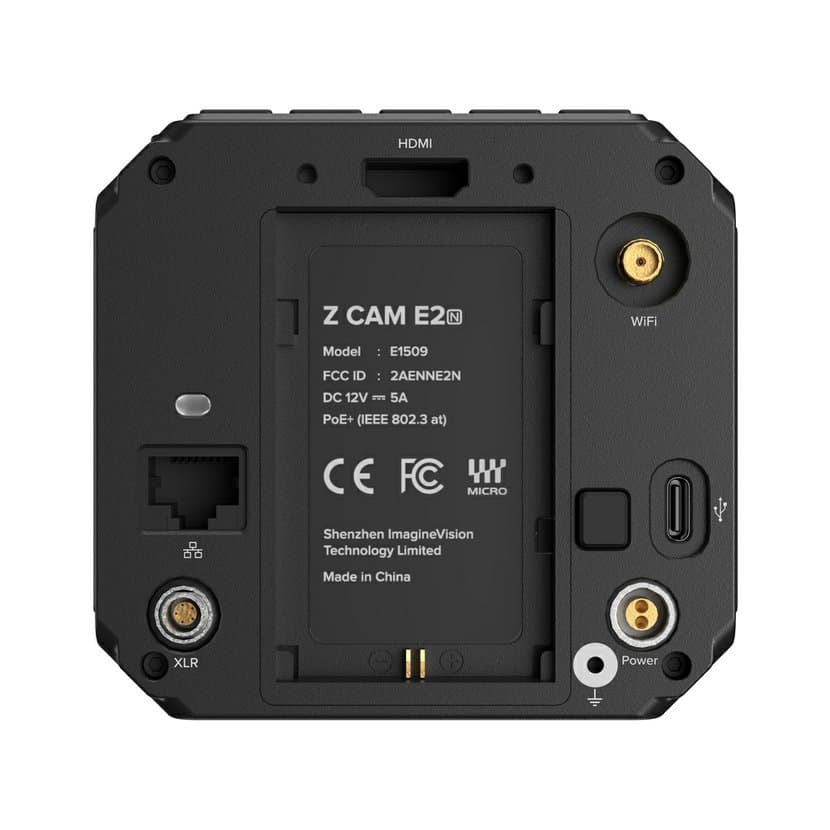

Video output: NDI® over Ethernet / HDMI 2.0
Connectivity: Gigabit Ethernet, USB-C, Wi-Fi 5 (802.11ac)
Audio I/O: 3.5mm stereo input, 3.5mm stereo output
Power: Canon LP-E6 battery / DC 12V (2-pin LEMO) / PoE+ (IEEE 802.3at)
Body material: Aluminum alloy
Weight: 660 g (without lens)
Dimensions: 85.3 x 91 x 86 mm

Package Contents

• Z CAM E2N camera body
• Mount cap
• Wi-Fi antenna
• User manual
• (Power adapter, battery, and Ethernet cable are not included)
