Marshall Electronics CV520 kompaktní Full HD IP/3G-SDI kamera

Marshall CV520 – compact Full HD camera with IP and 3G-SDI output

The CV520 is a discreet aluminum-alloy POV camera designed for deployments where an additional camera angle is needed without compromising image quality. Its 1/2.86" sensor with a resolution of approx. 2.12 MP captures Full HD video up to 1920×1080p60 simultaneously over both the 3G-SDI and IP outputs, allowing parallel integration into a traditional SDI infrastructure as well as a networked streaming chain.

The camera uses interchangeable M12-mount lenses (4.0 mm, 80° angle of view as standard) and supports the RTSP, RTMP and SRT streaming protocols with H.264/H.265 codecs. Remote fine-tuning and color matching across multiple cameras is handled via VISCA over RS485, VISCA over IP and a web interface. Power is supplied via the included 12V DC adapter or PoE. It finds its use in live broadcasts, production, courtrooms, corporate environments, and sports and news coverage.

• Sensor: 1/2.86" progressive CMOS, approx. 2.12 MP
• Resolution: Full HD up to 1920×1080p60
• Lens: interchangeable M12, 4.0 mm / 80° H.AOV as standard

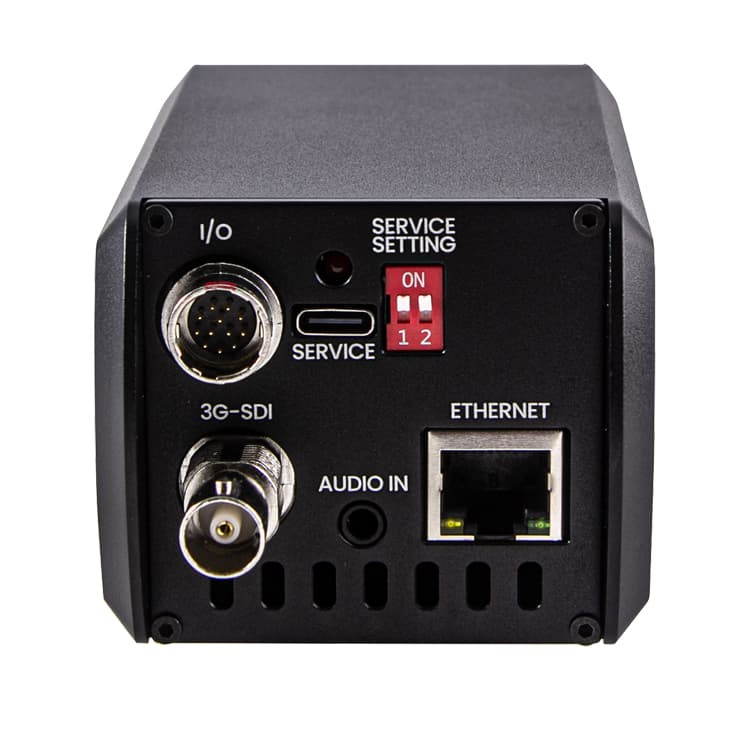

• Outputs: 3G-SDI and Ethernet (IP) simultaneously
• Streaming: RTSP, RTMP, SRT (H.264/H.265)
• Sensitivity: 0.01 Lux (day), 0.005 Lux (night)
• Power: 12V DC or PoE, 3.12 W consumption
• Control: VISCA over RS485/IP, web interface
• Dimensions / weight: 115.18 × 64 × 61 mm, 0.41 kg
