Marshall Electronics CV504-WP miniaturní broadcastová kamera IP67
SKU: CV504-WPVodotěsná miniaturní broadcastová kamera s vylepšeným senzorem pro křišťálově čistý obraz za každého počasí.
Full HDM12SDIPrice incl. 21% VAT
excl. VAT 619 €- Resolution
- Full HD @ 60 fps
- Sensor size
- 1/2.8"
- Mount
- M12
- Interface
- SDI
- Authorized distributor — full manufacturer warranty
- Shipped from Brno across the EU
- B2B purchase on invoice
Need advice or a quote? +420 910 124 151 · [email protected]
OVERVIEW
Key features:
- • Ultra-compact IP67-rated water- and dust-resistant camera
- • Interchangeable M12 lens mount
- • 4.0mm M12 lens included
- • 3G-SDI video output connector
- • New 2.2-megapixel Sony 1/2.8″ sensor
- • Night mode for extremely low light (0.005 Lux)
- • 1920x1080 resolution at up to 60p
- • Integrated 10' (approx. 3m) I/O breakout cable with control joystick
Product introduction:

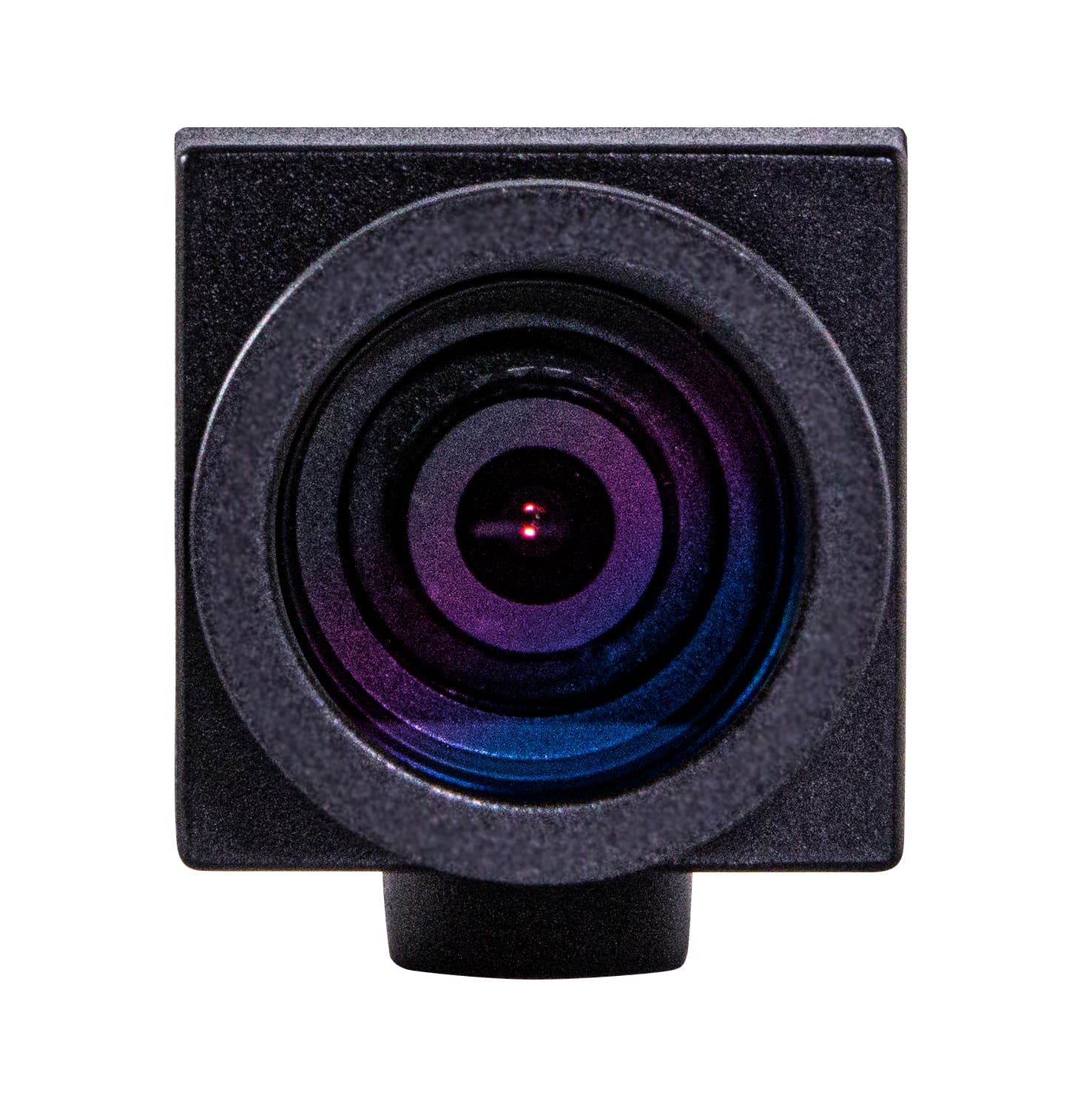

The Marshall CV504-WP Weatherproof Miniature HD Camera is a professional solution for capturing sharp, true-color video at outdoor broadcast events and AV applications where weather is a factor. The CV504-WP offers interchangeable lenses, remotely adjustable settings and protection from the elements in a compact IP67-rated housing.
Built around Sony's new 1/2.8" Solid-State sensors, the CV504-WP is capable of delivering clean HD video with 10-bit color even in low-light conditions down to 0.01 Lux. The CV504-WP can compete even in complete darkness thanks to a night mode that captures infrared wavelengths for a clear image in environments with as little as 0.005 Lux of illumination.
The CV504-WP utilizes a flexible 10' (3m) weatherproof cable that carries video, control and power to a full-size 3G/HD-SDI (BNC) output, an RS485 connection and a lockable 12V power connector. The CV504-WP can capture detailed shots from impossible angles while maintaining an ultra-discreet presence. Remote adjustment of a wide range of image parameters, including white balance, red/blue, exposure, gain control, pedestal (black level), white clip, gamma and more, is provided via common RS485 (Visca) or the OSD menu joystick.
SPECIFICATIONS
Sensor
| Sensor type: | 1/2.8″ 2.2 Megapixel |
| Effective pixels: | 1980 x 1080 |
| Pixel size: | 2.9 μm x 2.9 μm |
Resolutions and frame rates
| HD 1920x1080p: | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i: | 50, 59.94 & 60 |
| HD 1280x720p: | 50, 59.94 & 60 |
Input and output connectors
| Video output: | 1x 3G-SDI |
| Remote control: | 1x RS-485 interface |
| Power input: | 1x lockable barrel 12V DC power connector |
Lens
| Mount type: | M12 |
| Focal length: | 4.0 mm |
| Max. aperture: | f/2.0 |
| Focus: | Manual |
Control protocol
| Control protocol: | VISCA (RS-485) |
General
| IP rating: | IP67 |
| I/O cable length: | 10' (3m) |
| Power: | 12V DC |
PACKAGE CONTENTS
- • 1x Marshall CV504-WP camera body
- • 1x 10' breakout cable (attached to the camera body)
- • 1x 4.0mm M12 lens
