Marshall Electronics CV-H20-HFL prodloužený venkovní kryt kamery s ventilátorem a topením

Product Overview:

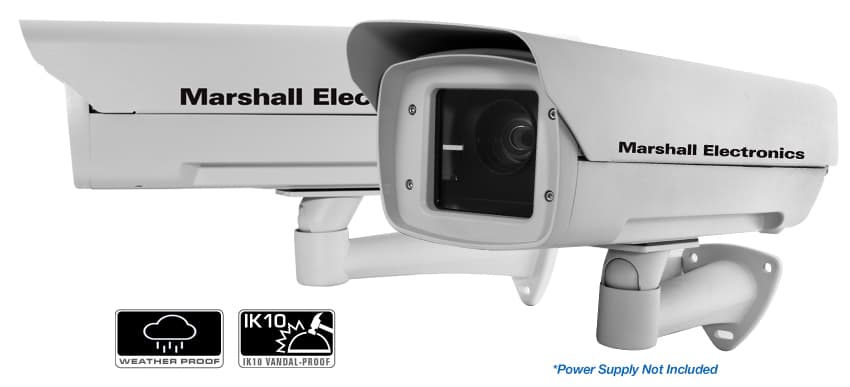

Extended version of the Marshall outdoor housing for longer zoom block cameras and cameras with a CS/C mount. The internal space of 89 × 85 × 300 mm accommodates camera-and-lens assemblies that the standard CV-H20-HF cannot fit.

The housing offers IK10 vandal resistance and a waterproof IP68-rated design, a built-in heater and fan, and a slide-on sunshield. The top section is made of ABS and polycarbonate, the bottom section and sunshield of aluminum. It opens from the top, so camera installation and servicing are done without removing the enclosure.

The heater runs on AC 24 V and the fan on DC 12 V — the manufacturer offers the optional CV-H20-PWR outdoor power supply for it (not included).

• • Waterproof design with an IP68 rating and IK10 vandal resistance
• • Top section ABS + polycarbonate, bottom section aluminum, sunshield aluminum
• • Built-in heater and fan, slide-on sunshield

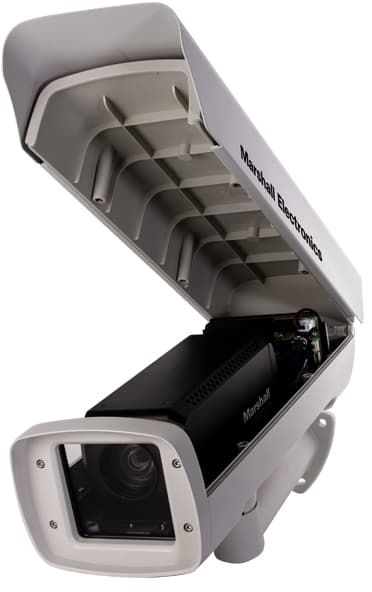

• • Top-opening design for easy installation and servicing
• • Internal camera space of 89 (W) × 85 (H) × 300 (L) mm
• • Wall-mount arm with 360° rotation and 90° tilt
• • Manufacturer-warranted outdoor operation from -20 °C to +50 °C
• • Optional CV-H20-PWR outdoor power supply (not included)

Compatibility: From our range, Marshall lists it as an optional accessory for the CV420-27X, CV355-27X-IP and CV355-27X-ND3 cameras. In general, it is intended for zoom block cameras and CS/C mount cameras that fit within the 89 × 85 × 300 mm space.
