Marshall Electronics CV-H20-HF venkovní kryt kamery s ventilátorem a topením

Product Overview:

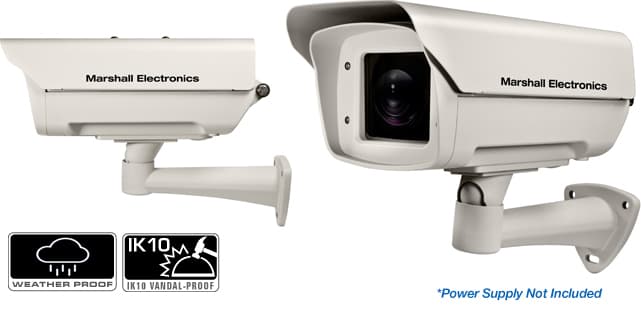

Outdoor housing for Marshall compact and zoom block cameras. The body, wall-mount arm, and sunshield are made of die-cast aluminum, and the housing carries an IP68 rating and IK10 vandal resistance. The built-in heater and fan keep the camera running in freezing cold and hot weather alike, while the slide-on sunshield reduces glare and heating from the sun.

The housing opens from the top, so the camera can be installed and serviced without removing the entire enclosure from the wall. The wall-mount arm rotates 360° and tilts 90°.

The heater runs on AC 24 V and the fan on DC 12 V — the manufacturer therefore strongly recommends adding the CV-H20-PWR outdoor power supply, which attaches to the rear of the housing (not included).

• • IP68 rating (waterproof and dustproof) and IK10 vandal resistance
• • Body, wall-mount arm, and sunshield made of die-cast aluminum
• • Built-in heater and fan, slide-on sunshield
• • Top-opening design for easy installation and servicing
• • Internal camera space of 108 (W) × 75 (H) × 180 (L) mm
• • Wall-mount arm with 360° rotation and 90° tilt
• • Manufacturer-warranted outdoor operation from -20 °C to +50 °C
• • Recommended CV-H20-PWR outdoor power supply (not included)

Compatibility: From our range, the cameras for which Marshall lists this housing as an accessory: CV320, CV355-10X, CV356-10X, CV366, CV368, CV370, CV374 and CV376. The deciding factor is the internal space of 108 × 75 × 180 mm. For longer cameras (CV420-27X, CV355-27X), the extended CV-H20-HFL version is available.
