PTZ Broadcast Kamera AIDA PTZ-NDI-X20

Name: PTZ Broadcast Kamera AIDA PTZ-NDI-X20
Brand: AIDA Imaging
SKU: ad009
Price: 1524.60 EUR
Availability: InStock

SKU: ad009

PTZ kamera s Full HD rozlišením a podporou NDI HX2 streamingu s nízkou latencí. Nabízí výstupy 3G-SDI, HDMI a RJ-45 spolu s 20× optickým zoomem.

Full HDNDI®20× zoomSDIHDMIIPUSB

From 1 524,60 €

Price incl. 21% VAT

excl. VAT 1 260 €

PTZ Broadcast Kamera AIDA PTZ-NDI-X20—

1 524,60 €excl. VAT 1 260 €

In stock at our supplier — ships within 2–3 business days

Key specs

Product description

LINK TO THE MANUFACTURER'S WEBSITE

• NDI®|HX2 streaming for low-latency video streaming and PTZ control over the NDI®|HX2 protocol
• Full HD Progressive Scan sensor captures sharp and vivid colors under a variety of lighting conditions
• Advanced digital image processor delivers a vivid and detailed picture with full access to features
• Motion-compensated temporal noise reduction filter ensures effective noise reduction for blur-free video

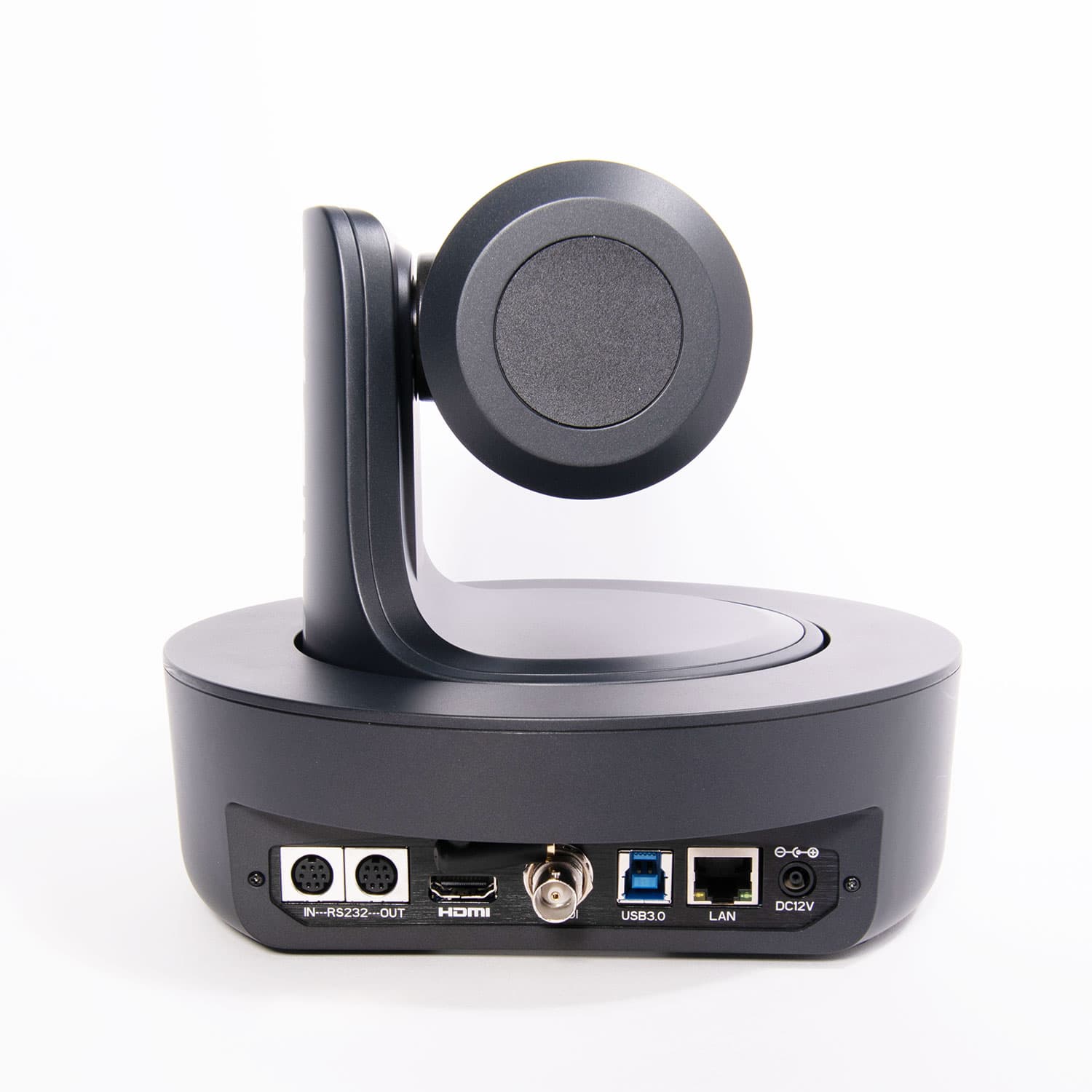

• 3G/HD-SDI, HDMI, RJ-45, USB 3.0 and USB 2.0 for versatility and smooth video performance
• Powerful optical zoom of up to 20X
• Compatible with other top-of-the-line products, compliant with the SMPTE 424M/292M standard
• Automatic white balance and shutter speed delivers optimized performance in a variety of situations
• Built-in OSD control for customizable picture settings
• Versatile and compact

Image Sensor:	1/2.85" Progressive CMOS
Effective Pixels:	Horizontal: 1920, Vertical: 1080
Pixel Size:	2.13 μm (H) x 2.13 μm (V)
Resolution:	1080p & 1080i: 1920 x 1080
Resolution Rate:	1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/29.97p/25p
IP Rate:	1920 x 1080 @ 1~60 1280 x 720 @ 1~60 1024 x 576 @ 1~60 620 x 360 @ 1~60
Output:	HD-SDI/3G-SDI HDMI RTSP / RTMP / NDI®\|HX2 USB 3.0 & 2.0
Color Space:	4:2:2 (YCbCr) 10bit
Min. Illumination:	0.1Lux

White Balance:	Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
Focus:	Auto, Manual
Shutter Speed:	1 to 1/10,000 Sec.

Lens:

20X HD Optical Zoom, F1.5 ~ F3.0

SMPTE:	SMPTE 292M, SMPTE 424M
IP Protocol:	TCP/IP, RTSP/RTMP

Camera Control:	Protocol: VISCA Interface: RS-232C IN & OUT, RJ-45 Remote control
Operating Temperature:	0°C - 40°C
Dimensions:	155mm x 160m x 170mm
Weight:	1.35kg
Power:	12VDC (+9 - +15VDC) PoE+ (IEEE802.3at Standard Required)
Accessories:	Remote control, Camera mounting bracket, USB 3.0, Power adapter and cable

Specifications are subject to change without prior notice.
