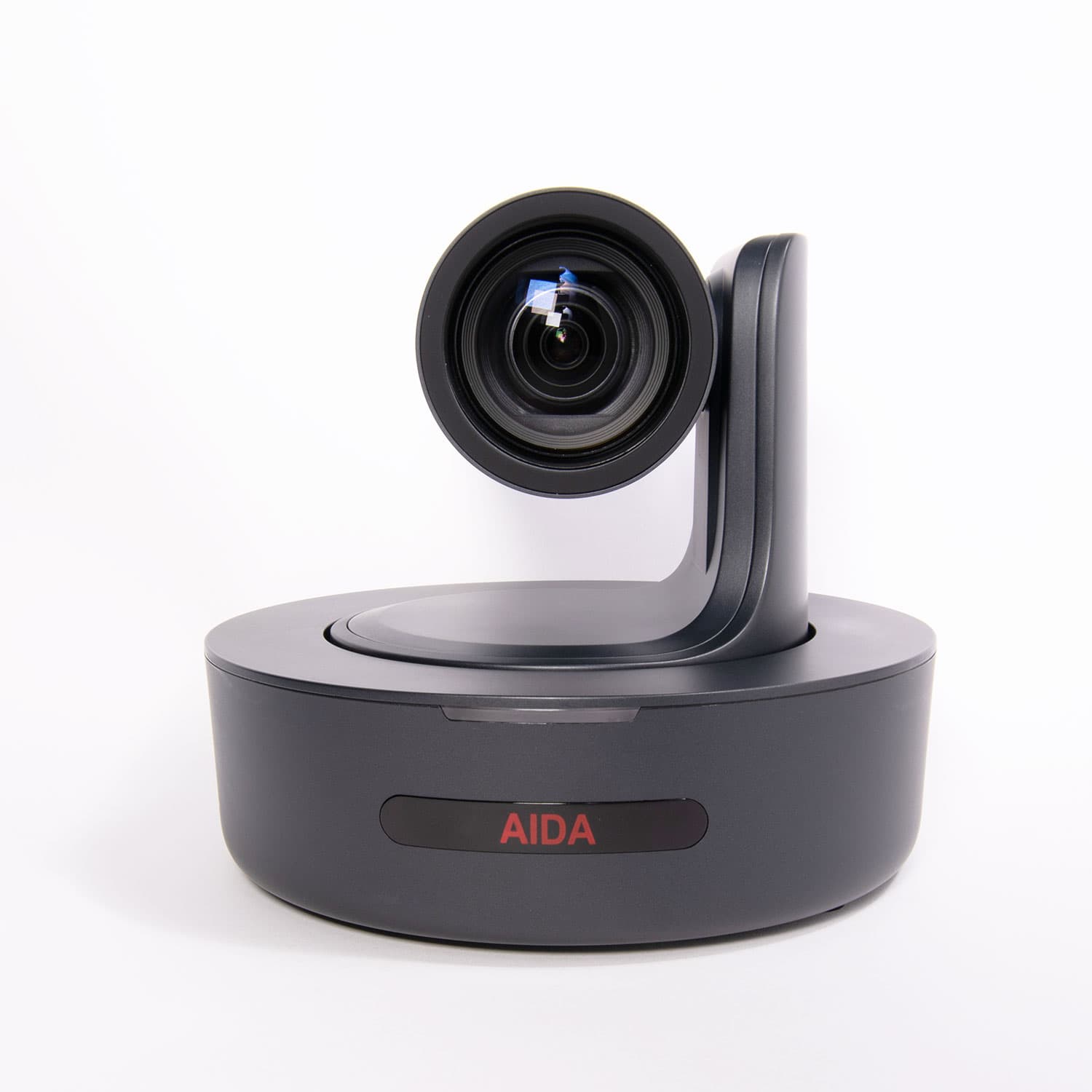

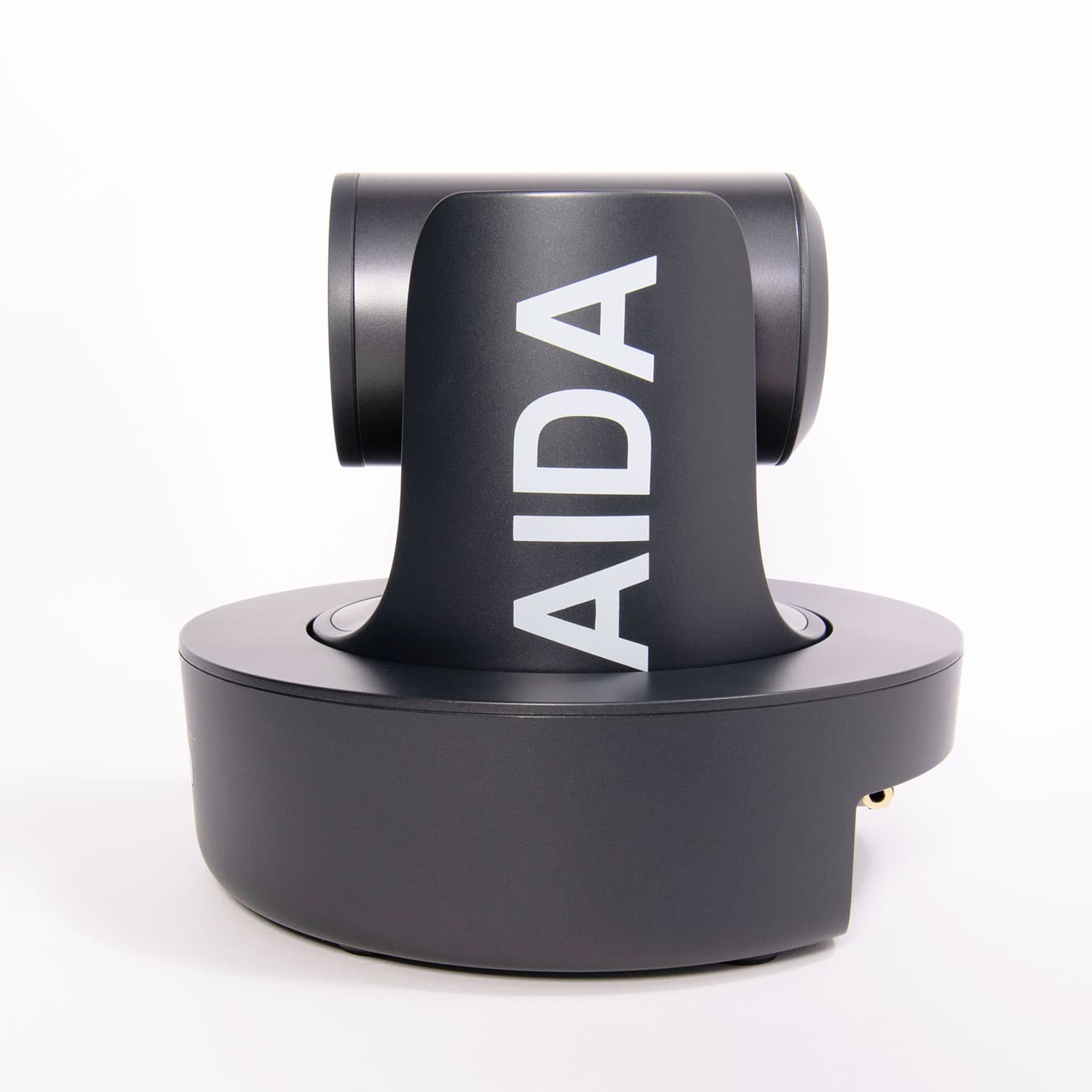

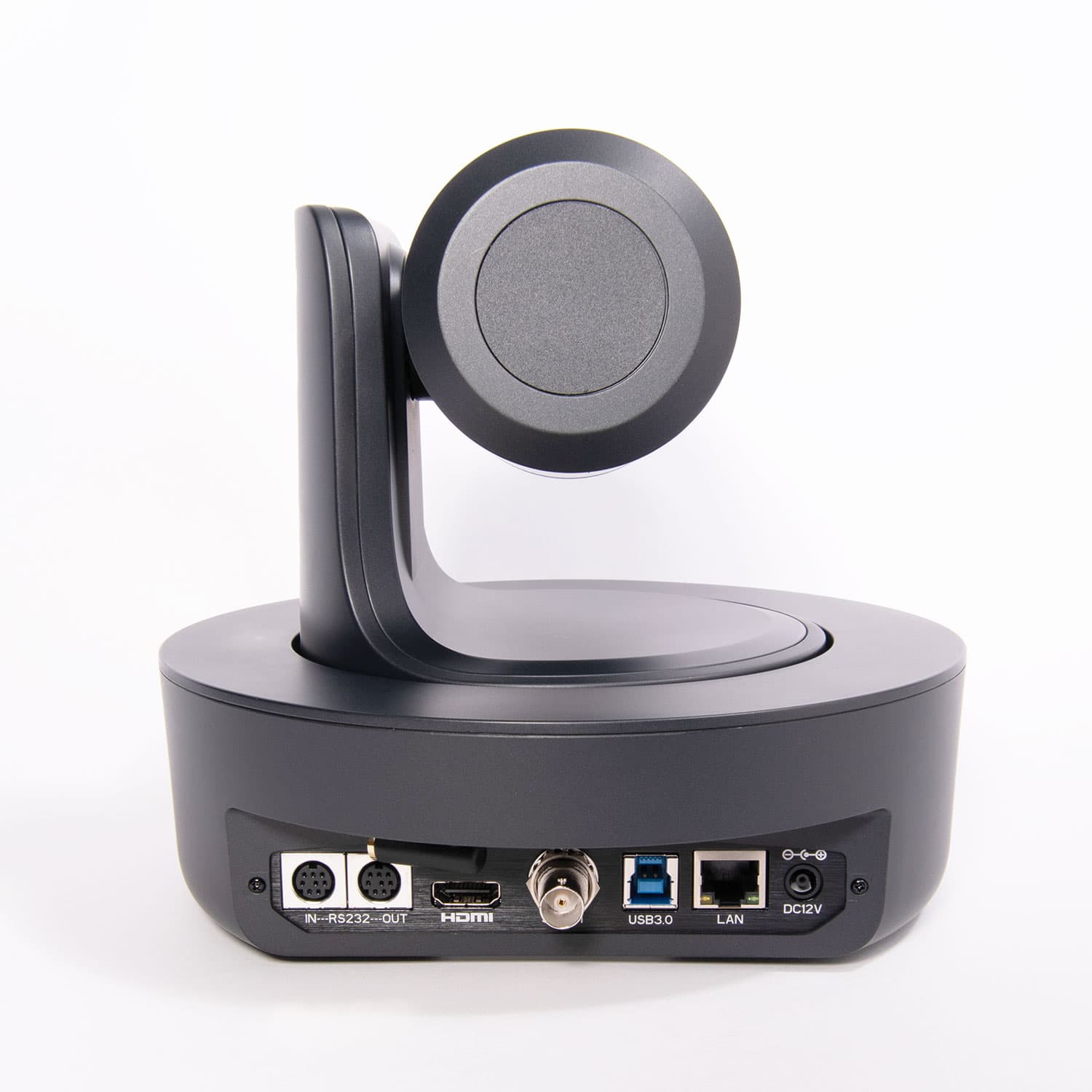

PTZ Broadcast Kamera AIDA PTZ-NDI-X12
SKU: ad008PTZ kamera s Full HD rozlišením a podporou NDI HX2 streamingu s nízkou latencí. Nabízí výstupy 3G-SDI, HDMI a RJ-45, optický zoom 12x a pokročilou redukci šumu.
Full HDNDI®12× zoomSDIHDMIIPUSBFrom 1 452 €
Price incl. 21% VAT
excl. VAT 1 200 €PTZ Broadcast Kamera AIDA PTZ-NDI-X12—
1 452 €excl. VAT 1 200 €
Ordered from supplier — typically delivered in 10–15 business days, we'll confirm the exact date
Key specs
- Resolution
- Full HD @ 60 fps
- Sensor size
- 1/2.5"
- Zoom
- 12×
- NDI
- Yes
- Interface
- SDI · HDMI · IP · USB
- Authorized distributor — full manufacturer warranty
- Shipped from Brno across the EU
- B2B purchase on invoice
Need advice or a quote? +420 910 124 151 · [email protected]
Product description
LINK TO MANUFACTURER'S WEBSITE
KEY FEATURES
- • NDI®|HX2 streaming for low-latency video streaming and PTZ control via the NDI®|HX2 protocol
- • A Full HD Progressive Scan sensor captures sharp, vivid colors under a variety of lighting conditions
- • An advanced digital image processor delivers a vivid, detailed image with full access to features
- • A motion-compensated temporal noise reduction filter ensures effective noise reduction for blur-free video
- • 3G/HD-SDI, HDMI, RJ-45, USB 3.0 and USB 2.0 for versatility and smooth video performance
- • Powerful optical zoom of up to 12X
- • Compatible with other high-end products in compliance with the SMPTE 424M/292M standard
- • Automatic white balance and shutter speed deliver optimized performance in a variety of situations
- • Built-in OSD control for customizable image settings
- • Versatile and compact
SPECIFICATIONS
VIDEO
| Image Sensor: | 1/2.5" Progressive CMOS |
| Effective pixels: | Horizontal: 1920, Vertical: 1080 |
| Pixel size: | 2.13 μm (H) x 2.13 μm (V) |
| Resolution: | 1080p & 1080i: 1920 x 1080 |
| Resolution Rate: | 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/29.97p/25p |
| IP Rate: | 1920 x 1080 @ 1~60 1280 x 720 @ 1~60 1024 x 576 @ 1~60 620 x 360 @ 1~60 |
| Output: | HD-SDI/3G-SDI HDMI RTSP / RTMP / NDI®|HX2 USB 3.0 & 2.0 |
| Color Space: | 4:2:2 (YCbCr) 10bit |
| Min. illumination: | 0.1Lux |
FUNCTIONS
| White balance: | Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor |
| Focus: | Auto, Manual |
| Shutter speed: | 1 to 1/10,000 Sec. |
LENS
| Lens: | 12X HD Optical Zoom, F1.5 ~ F3.0 |
PTZ
| Pan/Tilt range: | Pan: 340°, Tilt: +90 to -30° |
| Pan/Tilt speed: | Pan: 0° to +120°/s, Tilt: 0° to +80°/s |
| Presets: | 128 positions |
| Field of view: | 72.5° |
STANDARD
| SMPTE: | SMPTE 292M, SMPTE 424M |
| IP Protocol: | TCP/IP, RTSP/RTMP |
PHYSICAL PARAMETERS
| Camera control: | Protocol: VISCA Interface: RS-232C IN & OUT, RJ-45 Remote control |
| Operating temperature: | 0°C - 40°C |
| Dimensions: | 155mm x 160m x 170mm |
| Weight: | 1.35kg |
| Power: | 12VDC (+9 - +15VDC) PoE+ (IEEE802.3at Standard Required) |
| Accessories: | Remote control, Camera mounting bracket, USB 3.0, Power adapter and cable |
Specifications are subject to change without notice.
