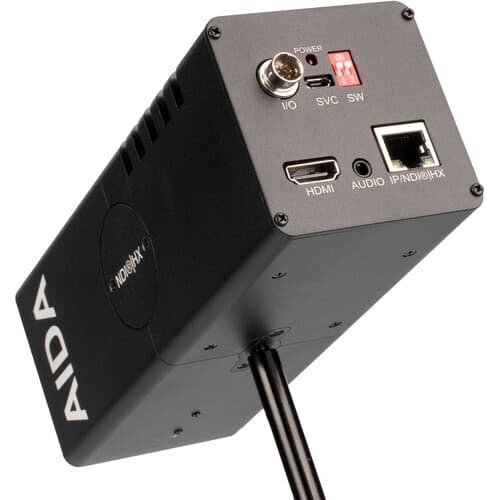

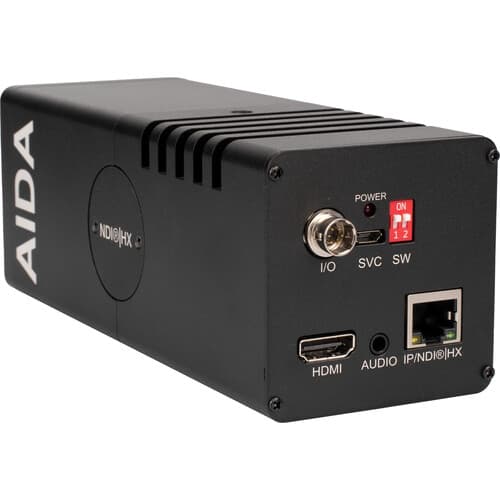

POV IP HDMI Kamera AIDA HD-NDI-X20
SKU: ad027POV IP kamera s Full-HD 1/2.8″ CMOS senzorem a výstupem NDI HX a HDMI. Disponuje 20x optickým zoomem a podporou PoE.
Full HDNDI®20× zoomHDMIIPFrom 1 052,70 €
Price incl. 21% VAT
excl. VAT 870 €POV IP HDMI Kamera AIDA HD-NDI-X20—
1 052,70 €excl. VAT 870 €
In stock at our supplier — ships within 2–3 business days
Key specs
- Resolution
- Full HD @ 60 fps
- Sensor size
- 1/2.8"
- Zoom
- 20×
- NDI
- Yes
- Interface
- HDMI · IP
- Authorized distributor — full manufacturer warranty
- Shipped from Brno across the EU
- B2B purchase on invoice
Need advice or a quote? +420 910 124 151 · [email protected]
Product description
LINK TO MANUFACTURER'S WEBSITE
MAIN FEATURES
- • Full-HD 1/2.8" Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX video
- • Accessible web interface for direct streaming to social platforms and image parameter control over IP
- • 20x optical zoom for FHD shots at distances of up to 43 meters
- • OSD Breakout cable provides power or zoom control via serial RS485 communication
- • Flawless transmission of multi-channel embedded audio over NDI®|HX
- • Ideal for new and existing NDI® setups
- • PoE compatible for easy single ethernet cable runs
SPECIFICATIONS
VIDEO
| Image Sensor: | 1/2.8" Progressive CMOS |
| Effective Pixels: | Horizontal: 1920, Vertical: 1080 |
| Pixel Size: | 2.9 μm (H) x 2.9 μm (V) |
| Resolution: | 1080p, 1080i, 720p |
| Resolution Rate: | 1080 60p/59.94/50p/30p/29.97p/25p/24p 1080 60i/59.94i/50i 720 60p/59.94p/50p |
| Output: | HDMI, IP (NDI|HX/SRT/RTMP/RTSP) |
| Color Space: | 4:2:2 (YCbCr) 10bit |
| Min. Illumination: | 0.2Lux (day), 0.1Lux (night) |
OPTICS

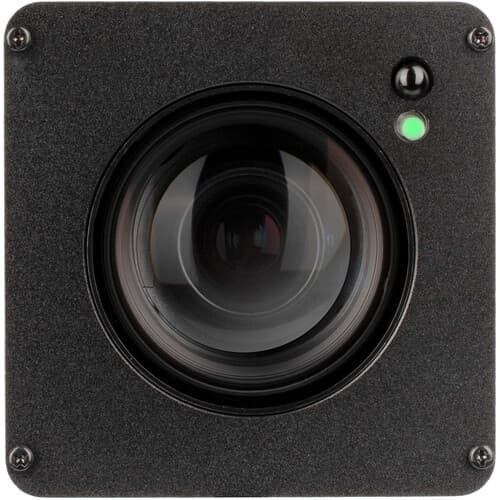

| Lens: | 20X HD Optical Zoom, F1.5 ~ F3.0 |
| Field of View: | 61° WIDE, 3.4° TELEPHOTO |
STANDARD
| IP Protocol: | UDP|IP, RTSP|RTMP, SRT, NDI|HX |
AUDIO
| IP Protocol: | 3.5 TRS Stereo Audio Port |
| Sample Rate: | 16/24/32 Bits |
PHYSICAL PARAMETERS
| Camera Control: | Protocol: VISCA Over IP Control: OSD button, Web UI or controller |
| Operating Temperature: | 0°C - 40°C |
| Dimensions: | 171mm x 64mm x 64mm |
| Weight: | 800g (with default weatherproof housing) |
| Power: | 12VDC (+9 - +15VDC) (PoE+ 24Watts) |
NDI® is a registered trademark of Newtek, Inc.
Specifications are subject to change without prior notice.
