UHD-100A

15 075,00 Kč bez DPH

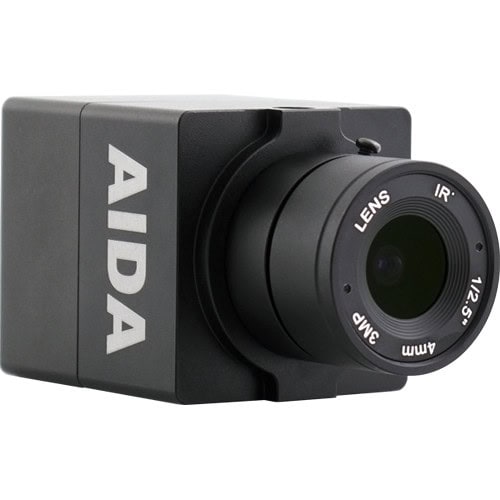

UHD 4K/30 HDMI 1.4 POV Camera with TRS Stereo Audio Input

Katalogové číslo: ad025 Kategorie: 4K POV Cameras, AIDA

Popis
Další informace

Popis

Launch your creations in Ultra-HD

Drive your visual inspirations with clarity. The UHD-100A simplifies the creation of video content
that requires Ultra-HD quality, ranging from telemedicine to machine vision in its smallest form.

<span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start"></span>

Specification

Video

Image Sensor	1/2.5″ Progressive CMOS
Sensor Size	Diagonal 7.20mm
Effective Pixels	Horizontal: 3840, Vertical: 2160
Pixel Size	1.62 µm (H) x 1.62 µm (V)
Resolution	2160 30p/29.97p/25p/24p 1080 60p/59.94p/50p/30p/ 29.97p/25p/24p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/25p
Output	HDMI 1.4
Color Space	4:2:2 (YCbCr) 10bit

Function

White Balance	AWB / AE / AF
Exposure	Full Auto, Bright, Shutter Priority, Iris Priority, Manual
Other	WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection

Lens

Lens	C/CS Mount (Default UHD 3.2mm Lens)

Audio

Input	3.5mm TRS Stereo Mic-in & Line in over I/O Cable
Sample Rate	16/24/32 Bits

Physical

Camera Control	RS-485 VISCA, OSD Button
Operation Temp	32° F – 104° F
Dimension	39mm x 39mm x 50.50mm / 1.53″ x 1.53″ x 1.99
Weight	140g / 0.30lbs
Power	12VDC (+9 – +15VDC)

Downloads

Další informace

Hmotnost	0,71 kg
