Marshall Electronics CV574-WP All-Weather NDI|HX3 4K UHD mini kamera

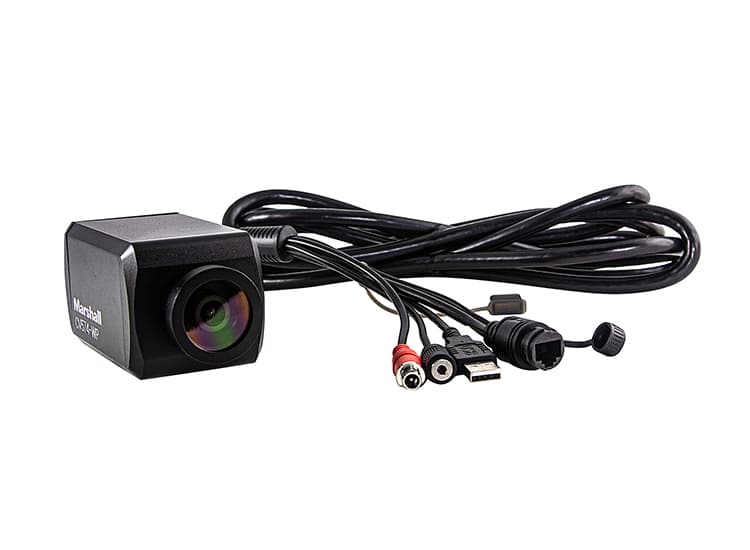

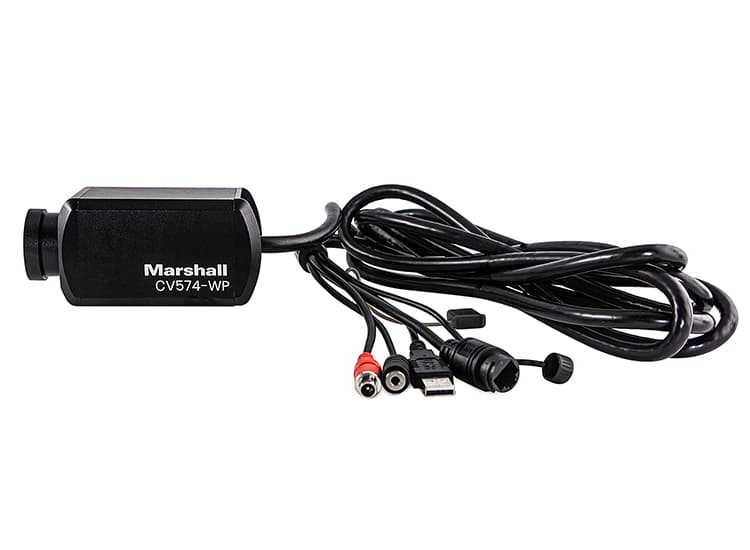

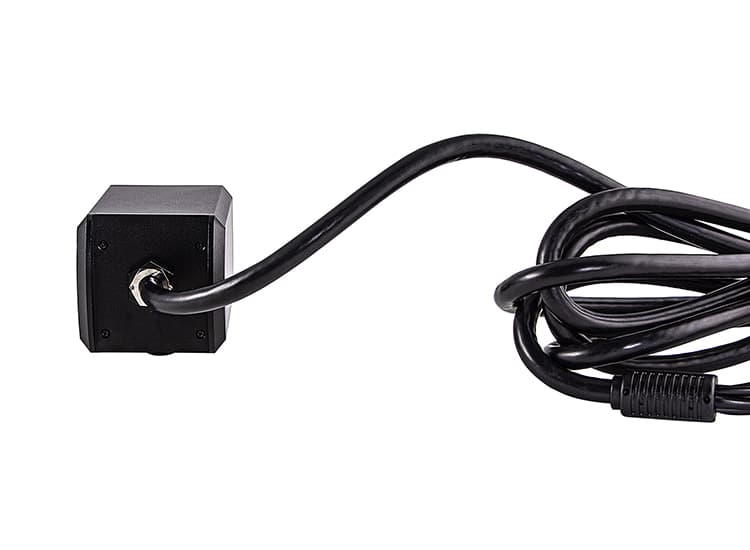

Marshall CV574-WP – rugged UHD camera for outdoor use

The CV574-WP is a miniature all-weather aluminum-alloy camera with an IP67 rating, designed for streaming in outdoor environments and adverse weather conditions. The camera features a 1/2.8" progressive CMOS sensor with a resolution of 8.46 MP and captures video up to UHD 3840×2160 at 60 fps. The interchangeable M12-mount lens (4.0 mm, 77° angle of view as standard) allows the field of view to be tailored to the specific application.

The video signal is available via the IP/Ethernet output with support for the NDI|HX3 (up to 1080p50/60), NDI|HX2 (full UHD resolution), RTSP, RTMP and SRT protocols with H.264/H.265 codecs. Power is provided by the included 12V DC adapter or PoE over a single CAT cable, simplifying installation in the field. The rugged 10-foot (3 m) breakout cable and an operating temperature range of −10 °C to 50 °C make the camera ideal for sports broadcasts, POV shots, courtrooms or outdoor assemblies.

• Sensor: 1/2.8" progressive CMOS, approx. 8.46 MP
• Resolution: up to UHD 3840×2160p60 (IP), NDI|HX3 up to 1080p50/60
• Lens: interchangeable M12, 4.0 mm / 77° H.AOV as standard
• Output: Ethernet (IP) – NDI|HX3, NDI|HX2, RTSP, RTMP, SRT
• Ingress protection: IP67, aluminum-alloy body, 10-foot breakout cable
• Sensitivity: 0.5 Lux (day), 0.01 Lux (night)
• Power: 12V DC or PoE, 5.6–6.7 W consumption
• Control: VISCA over IP, web interface
• Operating temperature: −10 °C to 50 °C
• Dimensions / weight: 113.45 × 55 × 61 mm, 0.75 kg
